Rotech Automation

Safety Beams & Light Curtains

Rotech Automation door and gate safety equipment includes a wide range of safety PE beams to facilitate safe and secure automated gate access for vehicles but also to protect and prevent injury to pedestrians. Our wide range of PE Safety Beams will provide a solution to match any configuration, no matter how unique your entry exit configuration is.

Photon SMART PE Safety Beam
Photon & Photon SMART PE Safety Beams
The Photon Semi-Wireless and Photon SMART Fully-Wireless PE Safety Beam combines the latest technology with a battery powered transmitter and receiver in a compact waterproof IP 54 ABS enclosure. U...
Read More
I 20 Wired Infrared PE Beam
SafePass I 20 PE Safety Beam
Wired infrared PE Safety Beam - 20M operating distance   The beams are self aligning up to 5 metres and can operate up to 20 metres.  Transmitter and receiver are housed in an IP65 ABS wat...
Read More

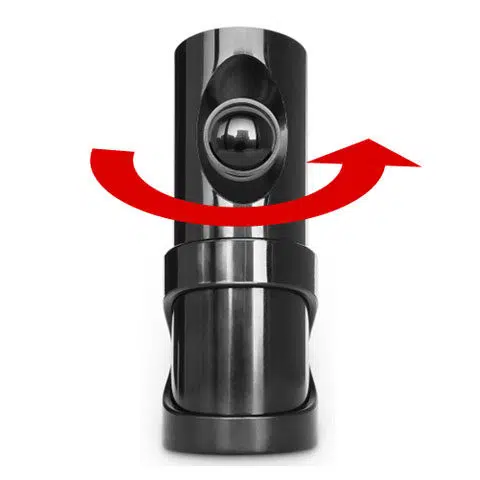

IR Adjustable PE Beam
SafePass I 20R Adjustable PE Beam
Wired infrared PE Safety Beam - 180 degree adjustable - 20M operating distance   The SafePass I 20R adjustable infrared safety beam provides a convenient and safe gate automation system for...
Read More
IR Adjustable PE Beam
SafePass W 30R Adjustable PE Beam
Wireless infrared PE Safety Beam - 180 degree adjustable - 30M operating distance   The SafePass W 30R adjustable infrared safety beam with a wireless transmitter provides a convenient and ...
Read More

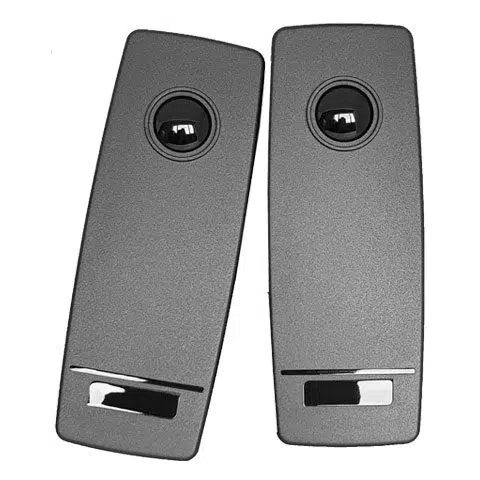

WIR Wireless PE Beams
SafePass W 30 Wireless PE Beam
Wireless infrared PE Safety Beam – 30M operating distance   The W30 infrared gate safety beam with a wireless transmitter provides a convenient and safe gate automation system for even th...
Read More

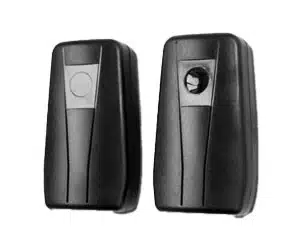

PE Beams Hard Wired
PE Beams Hard Wired 40M
The PE Beams Hard Wired consists of a transmitter and receiver unit mounted on opposite sides of the entrance.   The transmitter sends a modulated infrared beam to the receiver. When the be...
Read More

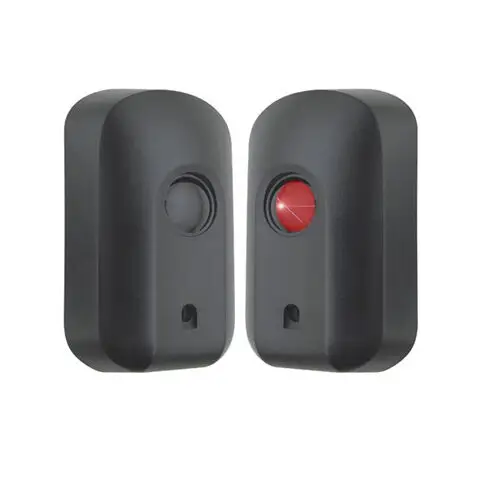

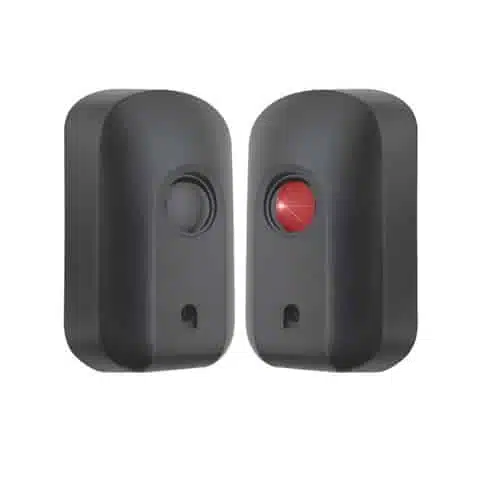

SafePass i5 PE Safety Beam
SafePass i5 PE Safety Beam
The i5 infra red beam consists of a transmitter and receiver unit mounted on opposite sides of the entrance.   The transmitter sends a modulated infra red beam to the receiver. When the b...
Read More

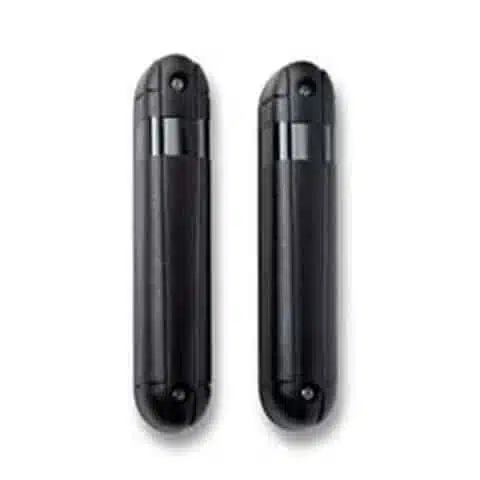

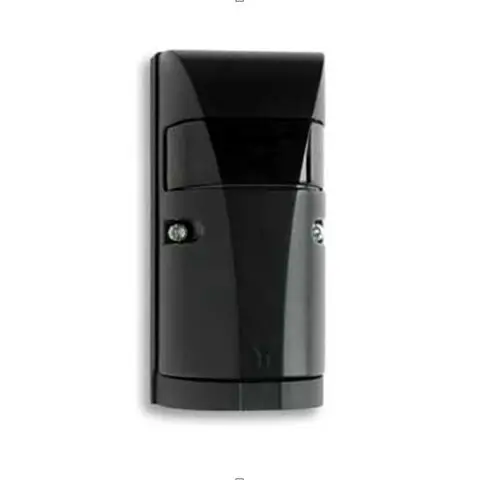

SafePass Vandal Proof PE Safety Beams
SafePass Vandal Proof PE Safety Beams
The VP920 and VP911 Vandal Proof PE Safety Beams will withstand extreme abuse making them suitable for installation in vandal prone areas, close to night clubs, unsupervised car parks and industrial c...
Read More

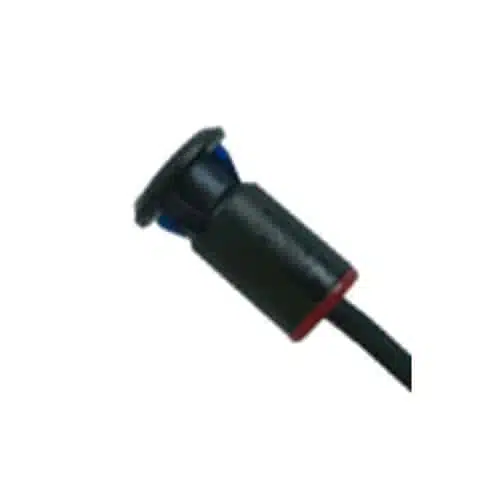

SafePass VR12 Button Type PE Safety Beam
SafePass VR12 Button Type PE Safety Beam
The combination of extremely small dimensions and ease of installation mean that the VR12 can easily be fitted into very confined spaces.
Read More

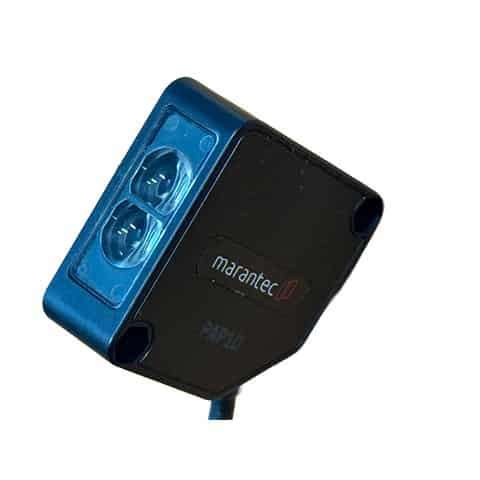

SafePass PC50 Reflective PE Safety Beam
SafePass PC50 Reflective PE Safety Beam
The PC50 Reflective Safety Beam is a high quality compact unit housed in a durable IP67 ABS waterproof enclosure.   The PE beam is supplied with a mounting bracket to allow for easy adjustm...
Read More
KTL Safety Light Curtain Image
SafePass KTL Safety Light Curtain
Ideal for industrial, residential or commercial applications, the KTL Light Curtain is available in two lengths 90 cm and 180    The SafePass KTL Safety Light Curtain uses photocell infrar...
Read More

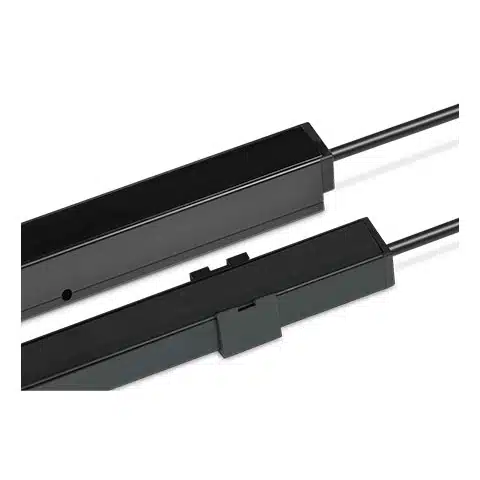

SG19 Safety Light Curtain
SafePass SG19 Safety Light Curtain – 1800mm detection height, 40 beams
Increased safety in harsh environments - 10-metre detection range - IP67  for outdoor use   The SG19 light curtain system consists of a self-contained transmitter, SGT and receiver, SGR, w...
Read More

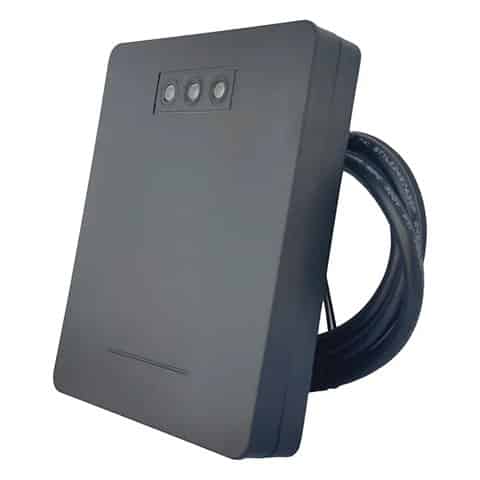

SafePass RD6 Radar Detector
RD6 Radar Detector 6m Safety Radar Detector for Boom Gate up to 6 metre
Capable of detecting vehicles up to a distance of 6 metres - providing greater security and safety around boom gates   The RD6 Radar Detector is simple, practical and convenient to install....
Read More

Safety Beams & Light Curtains

Explore our comprehensive comparison table of Safety & Security Beams and Light Curtains to find a solution to match any configuration. 

Model
Photon
Photon Smart
i5
Hard Wired
VP911
VP920
i20R
i20
W30
W30R
PC50 Reflective
VR12

Wireless
TX only
Y
N
Y
N
N
N
N
Y
TX only
N
N
Power Supply
Tx-2 x AA Alk Batt Rx-12-24v ACDC
2 x AA Alk Batt for each Tx & Rx
12-24v AC/DC
12-24v AC/DC
12-24v AC/DC
12-24v AC/DC
12-24v AC/DC
12-24v AC/DC
Tx-2 x AA Batt Rx-12-24v ACDC
12-24v AC/DC
12-240v DC
10-30 VDC
Power Consumption
30mA @12v DC
N/A
64mA
64mA
110mA
110mA
30mA @12v DC
25mA
30mA @12v DC
30mA @12v DC
100mA
25mA@10v DC
Maximum Distance
30m
30m
40m
40m
8m
15m
20m
20m
30m
30m
10m
12m
Contact Rating
3A @ 30v DC
3A @ 30v DC
5A @ 240v
5A @ 240v
1 A 24v ac
1 A 24v ac
3A @ 30v DC
3A @ 30v DC
3A @ 30v DC
3A @ 30v DC
3A @ 240v
n/a
Rating
IP 54
IP54
IP54
IP55
IP55
IP66
IP65
IP65
IP65
IP66
IP67
IP67
Adjustable Beam
N
N
N
N
90-180 degree
180 degree
180 degree
N
N
180 degree
N
N
Housing
Plastic
ABS
Plastic
Plastic
Metal
Metal
Plastic
Plastic
Plastic
Plastic
ABS
PC
Dimensions (LxWxH)
130x50x35
137x72x58
150x58x30
80x40x20
130x22x25
130x22x25
113x47x47
91x45x25
51x135x32
113x47X48
50x50x20
Ø16mmx L=34mm

Vehicle & Pedestrian Safety Beams for Gates

Commonly used to prevent doors or gates closing on pedestrians or vehicles a photoelectric (PE) beam is a continuous straight infrared beam of light which, once interrupted, sends a signal to the gate operator to typically stop its movement. The variety of available PE beam designs and technologies provide reliable and safe solutions for all types of configurations, including:  Semi-wireless versions are suitable for situations where power is only available on one side of the gate, Fully wireless and low-voltage PE beam models are ideal for use with solar-powered automatic gates, Reflector or long-distance emissions types for extra-wide/long gates; and  Anti-shock protection PE beams are versatile and secure options that add safety to all projects.

Industrial & Commercial Safety Light Curtains

Safety Light Curtains is a collection of PE beams mounted on a rail that will detect interruptions of the photoelectric beams at various heights. Often used to prevent accidents when working around machinery, safety light curtains also offer significant protection and security around, commercial and industrial roller doors where forklifts are in operation, and in locations that have boom gates such as camping grounds, industrial sites and weighbridges which typically have long vehicular traffic like semi-trailers.

Contact us today for advice on which option is best suited to your access control situation
