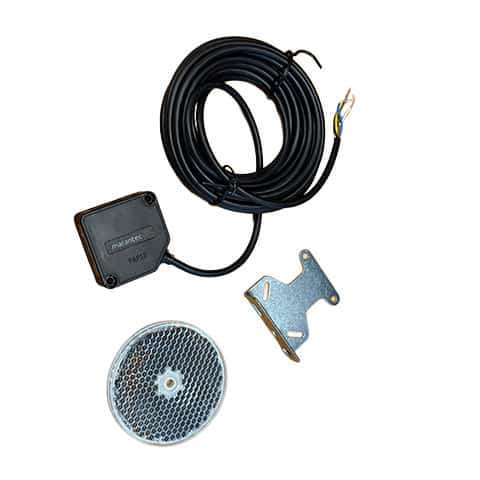

SafePass PC50 Reflective PE Safety Beam

The PC50 Reflective Safety Beam is a high quality compact unit housed in a durable IP67 ABS waterproof enclosure.

The PE beam is supplied with a mounting bracket to allow for easy adjustment.  Alignment of the beam is achieved through the setting of the potentiometer mounted on top of the PE beam.

The PC50 Reflective PE Safety Beam includes the following features:

  • Two LED’s on top of the beam indicate the status
  • Another switch allows the contacts to be changed from N/O to N/C without changing the connections
  • Maximum operating distance is 10 metres
  • Input voltage is 12 – 240vdc or 24 – 240vac and the relay is rated at 3 amps.



For more information download our product datasheet.

adobe-PDF-icon SAFEPASS PC50 REFLECTIVE PE SAFETY BEAM DATASHEET

Specification PC50 Reflective PE Beam
Power Supply 12-240v DC
24-240v AC
Power Consumption 100mA
Maximum Distance 10 Metre
Contact Rating 3A @ 240v
Protection IP 67
Dimensions 50 x 50 x 20



For more information download our product datasheet.

adobe-PDF-icon SAFEPASS PC50 REFLECTIVE PE SAFETY BEAM DATASHEET
