SafePass SG19 Safety Light Curtain

$1,479.50 (Incl GST)

Increased safety in harsh environments – 10-metre detection range – IP67  for outdoor use



The SG19 light curtain system consists of a self-contained transmitter, SGT and receiver, SGR, which are positioned opposite of each other. The units are housed in compact, but sturdy, aluminium profiles, which are sealed to IP 67 waterproof specification.

SKU: 20034

The signal of each individual channel is adjusted automatically, which compensates for misalignment and contamination during operation, The transmitter and receiver units are optically synchronised.

The advanced automatic signal-tracking (AST) feature ensures that no onsite set-up or adjustments are required.

Both the transmitter and receiver detectors are protected against reverse polarity of power supplies, control input and output signals. The output is also protected against short circuit and inductive loads.

SafePass SG19 Safety Light Curtain features include:

  • 1-10 metre sensing range
  • 40 parallel scanning beams
  • Active height of 1800 mm
  • Detector length of 1930 mm
  • Plug connection
  • Automatic sensitivity adjustment

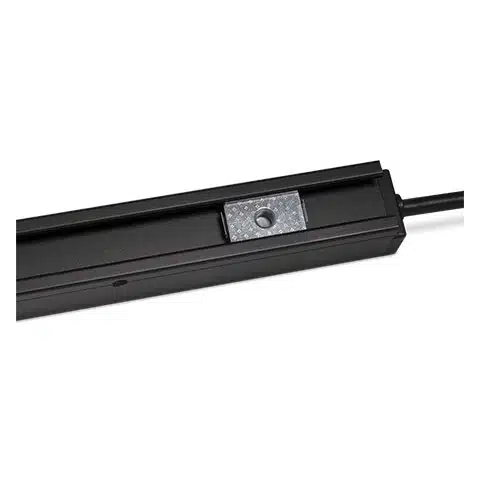

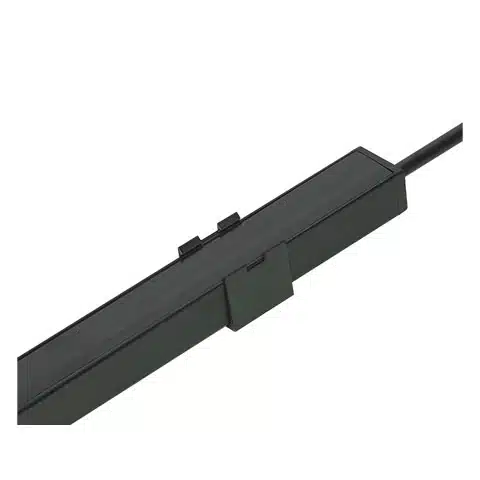

  • Compact aluminium IP67 housing

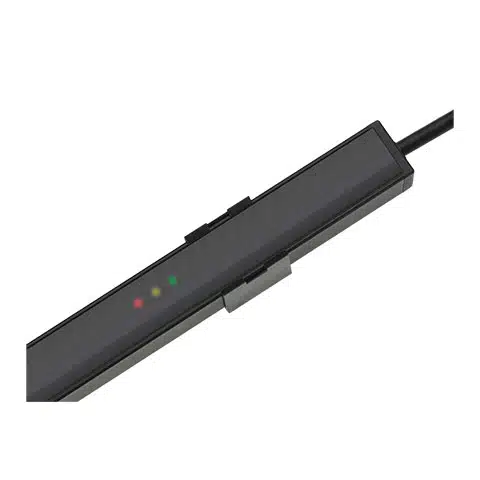

  • Power, output and system status indicators
  • 12-30 V dc supply voltage
  • 5 wire solid state relay output
  • Test input
  • Dynamic sequential blanking function ignores the moving door



For more information download our product datasheet.

adobe-PDF-icon SAFEPASS SG19 SAFETY LIGHT CURTAIN DATASHEET







SafePass SG19 Safety Beams  SG19TX Transmitter  SG19RX Reciever
Voltage 12-30 Vdc 12-30 Vdc
Current consumption 70 mA (RMS) 30 mA
Max output load Solid state 100 mA
Short circuit protected Yes
Inductive load protection Yes
Reverse polarity protected Yes
Number of parallel beams  40
Active height 1800
Sensor spacing 45 mm
Response time 50 ms
Maximum sequential blanking speed 0,9 m/s
Minimum size of detectable objects 50 mm
Power on indicator Green LED
Output indicator Yellow LED
System status indicator Red LED
Opening angle +/– 10°
Emission angle +/– 10°
Housing dimensions (w x d) G-profile 19,5 mm x 20,8 mm
Housing material  Profile | Lens Cover Aluminium (black anodised)     Polycarbonate
Connection 10m Cable and M12  Plug 10m cable and M12 Plug
Light immunity @ 5o incidence 100 000 lux
Temperature operation +20 to 65 oC
Sealing class IP 67
Housing length 1948 mm
Active height 1800 mm
Connection Output Solid State Relay (NC)



For more information download our product datasheet.

adobe-PDF-icon SAFEPASS SG19 SAFETY LIGHT CURTAIN DATASHEET







For information about installation and operating instructions please download our PDF

adobe-PDF-icon SAFEPASS SG19 SAFETY LIGHT CURTAIN INSTRUCTIONS
