D5 Evo SMART Sliding Gate Opener for Gates up to 500kg | Heavy Residential

D5 Evo SMART sliding gate opener designed for heavy residential applications – fast operating speed – low voltage version available

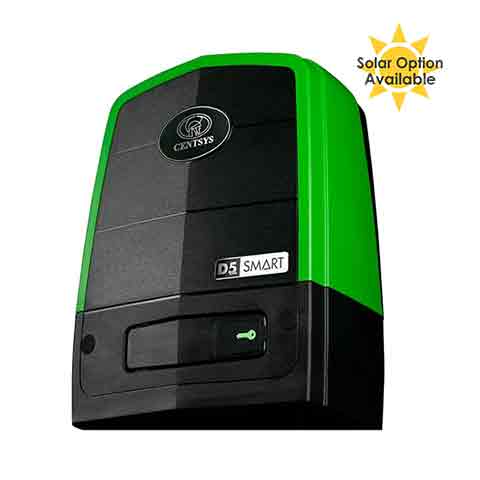

The D5 EVO SMART sliding gate operator is designed for heavy residential applications that need a fast opening speed, strength and dependability. The D5 EVO SMART is the fastest operator in this class, at 24 metres per minute (400mm per sec) and suited for gates up to 500kg.

Make an enquiry

Product Description
Technical Specifications
Install Instructions & App

PRICING AND OPTIONS

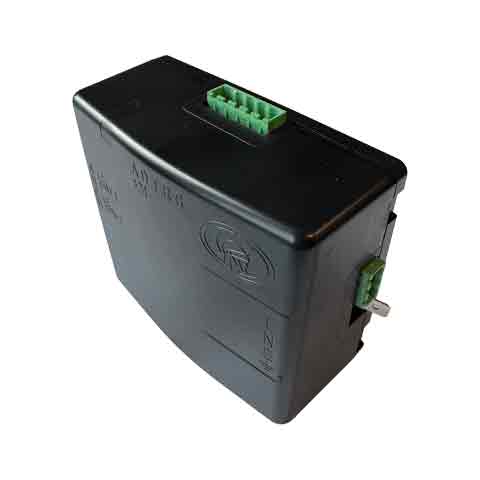

This 12v operator comes with batteries as standard backup and has a low-voltage charger as an option.

The opening and closing speeds as well as the ramp-up/ramp-down down are independently adjustable.

The D5 Evo SMART Sliding Gate Operator includes the following features:

Uninterrupted Security and Convenience: Dependable battery-driven technology ensures seamless operation even during power outages.
Easy Installation, Convenient Commissioning and Operation: Effortless smartphone setup and single-action manual release, saving installers time and effort with the industry-leading design and App-based programming with an easy-to-use and intuitive graphical user interface.
Intelligent Features, Intelligent Insights, Seamless Control: Advanced alerts, notifications, and reporting keep you informed and in control with easily accessible real-time diagnostics and logging. Manage your gate with maximum convenience, control and flexibility with the user-friendly smartphone app.
Wireless, Effortless Safety: Compatible with Photon SMART PE Beams for a complete wireless and easy-to-configure experience.
Enhanced Security: Built-in vibration sensor to detect theft/tamper that can be mapped to an output for alarm system integration or to activate a 12Vdc siren at the gate, can also be combined with the optional improved theft-resistant cage.

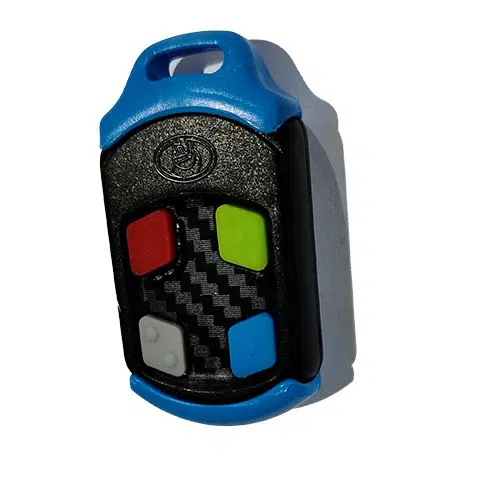

Remote Control: A rolling code high-security radio receiver is built into the control panel. Two 4-button transmitters are supplied with the operator, and they can be used to operate any of the system inputs. Individual transmitters can be added or deleted from the receiver memory.

For more information, download our product datasheets

Specification	D5 EVO	D5 EVO LV
Warranty	24 Months	24 Months

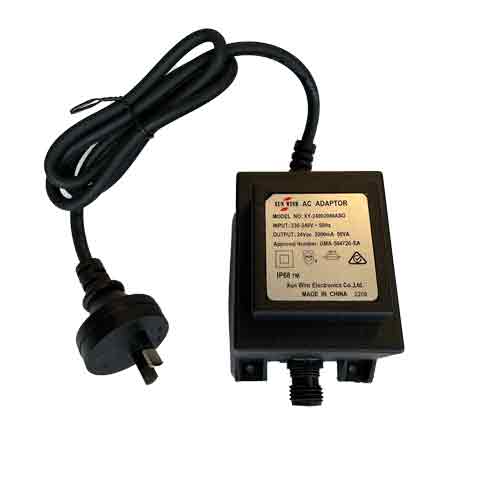

Input Voltage	110V –240V AC 50/60Hz (1)	16V AC or Solar
Current consumption (Mains)	320mA peak	320mA peak
DX12 V Battery Charger current output	1.8A @ 14.3V +/- 5% (28W)	1.8A @ 14.3V +/- 5% (28W)
Operations per day – Maximum	150 (3,6)	150 (3,6)
Motor Voltage	12vdc	12vdc
Motor power supply	Battery-driven (standard Capacity - 1x 12V)	Battery-driven (standard Capacity - 1x 12V)
Current consumption (Motor at rated load)	13A	13A
Input/Output sink currents (max accessory current draw)			Input/Output sink currents (max accessory current draw)
I/O (4) and I/O (5)	100mA (12V)	100mA (12V)
O (6)	3A (12V) 10 sec Pulse	3A (12V) 10 sec Pulse
Motor push force – starting	30kgf	30kgf
Motor push force – rated	17kgf	17kgf
Gate Mass – Maximum	500kg	500kg
Gate Length – Maximum	20m	20m
Gate Speed (varies with load) (4)	Up to 24m/min 400mm/sec	Up to 24m/min 400mm/sec
Operations in battery backup mode with 7.2Ah batteries	Operating Mode Up to 24m/min 7kgf	Operating Mode Up to 18m/min 7kgf
Half day (5,6,8)	90	44
Full day (5,6,8)	70	35
Collision Sensing	Electronic	Electronic
Operating temperature range	-15°C to 50°C	-15°C to 50°C

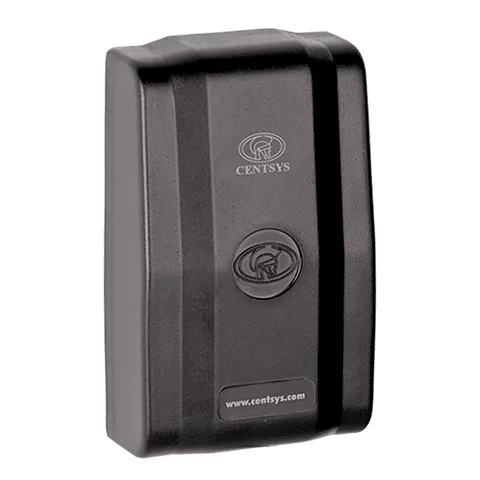

Onboard receiver type	Code-hopping multichannel receiver with selectrive add and delete
Receiver code storage capacity	1500 Remotes (7)	1500 Remotes (7)
Receiver frequency	433.92MHz	433.92MHz
Degree of protection	IP55	IP55
Mass of unit packed (with standard kit, but excl. rack and battery)	7.1kg	7.1kg
Packaging dimensions (with standard kit, but excl. rack and battery)	325mm wide x 245mm deep x 395mm high

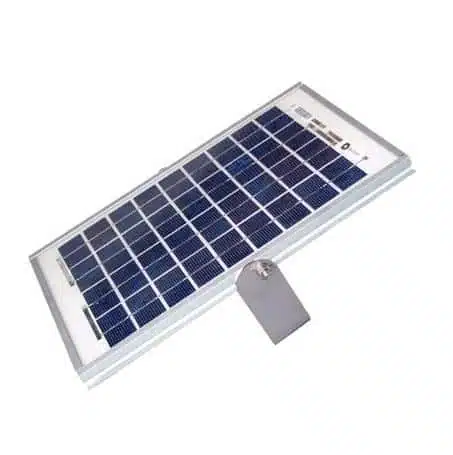

1 Can operate off a solar supply, consult your local dealer for assistance 2 Based on 25°C ambient temperature and unit not in direct sunlight 3 Based on a motor push force of less than 50% of rated (Starting and Running forces) 4 Opening and closing speeds can be configured to run slower depending on the requirements of individual installations 5 Based on 7Kgf. Gates requiring up to 17Kgf will result in fewer operations 6 Based on 4m gate, excluding all accessories 7 Multiple buttons per remote can be used 8 Based on the type and condition of the Battery

For more information, download our product datasheets

Download our information about installation and operating instructions

PDF’S

Get the SMART experience with the MyCentsys Pro mobile app for INSTALLERS and USERS!

INSTALLERS – effortless operator set-up and gate management using your smartphone. The MyCentsys Pro app makes setting up and configuring the operator’s many features quick and easy. Set the gate limits, speed, automatic closing and unique profiles for users, with just a few taps.

USERS – take control of your gate and/or garage. The MyCentsys Remote is a feature-rich interface for all gate access and automation requirements. It seamlessly integrates with both SMART and ULTRA solutions, providing live device states and health information, push notifications and the ability to triger actions, all in one convenient App.
