Bionik BK Compact Boom Gate for Commercial Car Parks and General Industry

Compact design – Cost effective solution for sites with tight spaces – Tough 100% duty cycle – Up to 5000 operations per day – Fast opening speed – Instant reversing – Superior safety sensing

The Bionik BK automatic boom gate’s modern compact design allows it to be installed where regular boom gates won’t fit such as buildings with narrow kerbing or low ceilings.

Retaining all the functionality provided by its big brother, the Bionik AG, the BK’s compact construction makes it a value for money alternative for more basic applications such as medium-sized car parks, factories, office complexes, apartments, commercial premises, industrial sites and residential areas.

The Bionik BK’s advanced features provide smooth operation, instant reversing, superior safety sensing, tough 100% duty cycle and economical low power consumption.

Make an enquiry Quick Quote Spare Parts

FOR MORE INFORMATION ON OUR PRODUCTS AND SERVICES,
NEED A QUOTE OR HAVE A QUERY
CALL US ON (07) 3205 1123 OR SUBMIT THIS FORM.

Name*
Product Name
Email*
Phone Number*
Message*
Are you a*
- Company
- Private
Company Name
Website
Is the road sealed?*
- Yes
- No
How wide is the road?*
Approx number of operations per 24 hours*
Postcode for site*
FOR SECTOR AUTOMATIC BOOM GATES ONLY Please provide the following additional information if you require a quote for solar powered operation.
Do you have full sunlight all day?
- Yes
- No
Is there any other equipment to be connected?
- Yes
- No
CAPTCHA

A new state-of-the-art solution this high-tech boom gate’s unique design and easily programmed multi-function digital controller offers precise speed control and ultra-responsive operation.

It’s performance and features are equal to larger boom gates while its smaller size means it is ideal in situations where space is a premium.

The innovative brushless 36V motor with a permanent magnetic field, combined with the new digital control unit, enables the Bionik BK Boom Gate to offer so much more than regular boom gates.

Features of the Bionik BK Automatic Boom Gate include:

Compact design: Smaller than regular boom gates the BK is engineered for optimum robustness and high stability during use.

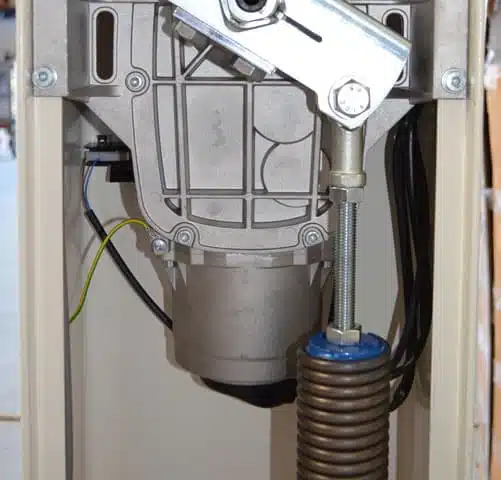

Unsurpassed quality, tough and durable: European designed and manufactured, the mechanical quality of the Sentinel BK is exceptional. Featuring machined steel gears, high-quality bearings, a strong gearbox and a self-locking mechanism that prevents damage from the pole being forced.
Essential safety features are covered: Strategically placed warning lights on the top of the cabinet are standard. Boom pole lights, loop detectors and safety beams options are also available ensuring vehicles and pedestrians alike are protected.
Speed control: The absolute encoder constantly monitors the speed and position of the boom pole. The control unit accurately adjusts the opening and closing speed for smooth operation and longer life.
Increased safety sensing: The motor design enables instant reversing of the boom pole if any safety devices are activated or if the pole is obstructed. Increased control of the safety sensing means all aspects of safety can be accurately managed.
Reliable and efficient: The revolutionary brushless motor is more efficient – allowing up to 5000 operations per day with ultra-low power consumption. The brushless motor saves time and money in maintenance.
Battery back-up: For areas with power problems a battery backup automatically initiates on power failure—allowing the boom gate to function for up to 300 operations.
Optional solar power: Allows the boom gate to operate in temporary situations or areas without ready access to mains power.
Security feature: The Bionik BK’s intelligent control panel software can instantly lowers the pole to halfway to prevent tailgating.

For more information view our product datasheet and videos:

PRODUCT DATASHEET	PRECISION BIONIK GEARBOX	LED WARNING LIGHTS IN ACTION
BIONIK BOOM GATES AT NORTH QLD MINE	BOOM LIGHTS HIGHLY VISIBLE AT NIGHT	HOW A BRUSHLESS DC MOTOR WORKS

Specification	BK Automatic Boom Gate
Boom Pole Length	3 metre or 4 metre
Cycles per day (opening/closing 24h non stop)	5,000
Opening Time	2 – 6 or 3 – 6 (sec)
Accessories power supply	24V DC
Manual Release	External with key
Power Supply	230V AC 10 AMP
Brushless motor power supply	From 0 to 36V DC
Motor Current	From 0 to 15A
Motor power	200W
Output Torque	From 0 to 200 Nm
Operating temperature	– 20 + 55 C°
Protection Level	IP54
Battery back up	(optional)
Master/Slave	Yes
Travel control system	Digital Absolute Encoder

For more information view our product datasheet and video:

PRODUCT DATASHEET

HOW A BRUSHLESS DC MOTOR WORKS


Description

Stock Code

Price (Incl GST)

3-4 metre Bionik BK boom Gate with cabinet flashing lights & pole (pole length 2.8-3.8 metres from front of cabinet). There is only a 4 metre version but the pole can be cut down and the spring tension adjusted for a 3 metre pole.

3601RG

$2,568.50
