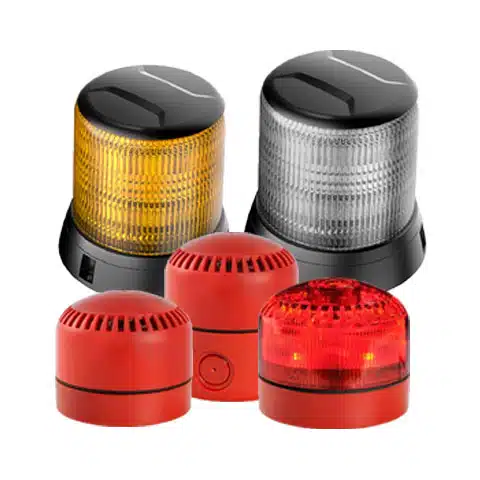

SafePass Warning Lights & Sounders

Rotech has access to a wide range of voice sounders, sirens and warning lights.



The SafePass Amber High Profile Beacon and SIR-EJ and SIR-EJ LED Electronic Sounders and Strobe are available from stock, for any other requirements please call us.

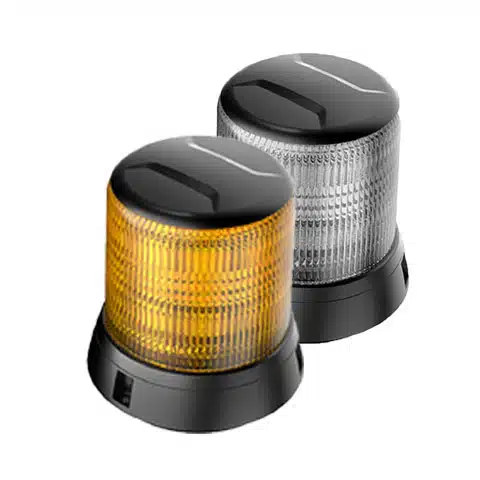

SafePass Amber High Profile Beacon

The SafePass Amber High Profile Beacon is designed to get attention. With bright colour, intensity, and flashing rate it strongly delivers a sense of emergency.

With multiple settings, it also provides a 360-degree warning illumination for all emergency vehicles, tow trucks,  warehouse forklifts and exit gates where extra safety is required.

Features:

  • ECE R10(EMC), SAE J845 Class 1 and CISPR 25 Class3 Certified, virtually no RFI/EMI radiation.
  • Available in White and Amber Light
  • Fully encapsulated for moisture, vibration and corrosion resistance.
  • 32 pcs high-intensity LEDs to provide consistent warning performance.
  • Aluminium die-casting outer dome and extruded aluminium platform ensure stability during extended dwell time and long life dependability.
  • Screw mounting includes a 500mm cable.
  • 11 optional flash patterns that can be customized.
  • Magnet mounting model meets ISO-4148 standard.
  • 2 mounting models are available (Surface Mount, Magnet).
  • 2 years warranty.



SIR-EJ and SIR-EJ LED Electronic Sounders and Strobe

Multi-function electronic sounder or sounder with red LED beacon combination

  • 2-stage alarm on sounder version, output up to 105dB@1m
  • 3-stage alarm on sounder-beacon version (flashing, flashing with sound, steady with sound)
  • Tones include those meeting AS1670 and AS2220
  • Surface mount with shallow or deep base
  • Available in red or white body
  • Multi-voltage 12-24v ac/dc
  • IP65



The flashing strobe light can be wired together or independent from the sounder enabling the sounder to be turned off while the flashing light remains activated. This keeps the alarm state present without the noise of a prolonged audible alarm.

For more information download our product datasheet.



Specification Amber High Profile Beacon
Lens Amber LED / Clear Lens
Profile High profile -123mm height
Mounting Surface Mount
Voltage 10-30V
Rating ECE R65 Class 1/SAE J845 Class 1 ECE R10/CISPR 25 Class3
Warranty 2 Years
Weight 0.5000kg
Height x Width Dia 120 x 123mm height





Specification SIR-EJ and SIR-EJ LED Electronic Sounders and Strobe
Sounder Deep Base Red Sounder/LED Deep Base Red/Red
Voltage 12 –24VAC/DC 12 –24VAC/DC
Current 215-250mA 300-350mA
Weight 0.26kg 0.37kg
Sound Output 105dB @ 1m
Sound Frequency SIR-EJ – 11 tones (2 stages of 8 tones)
Flash rate 3 x 85fpm ±10 or steady (Sounder – beacon version)
Protection IP65
Duty Continuous
Temp rating (oC) -30 to +50
Cable Entry M20 or through mounting base
Construction Polycarbonate





For more information download our product datasheet.
