SafePass SSR-3 Infrared & Microwave Automatic Sliding Door Sensor

The SafePass SSR-3 sensor combines Automatic Door Activation and Monitored Safety for Sliding Doors

This innovative energy-saving sensor offers pedestrian door activation and unparalleled safety at mounting heights of up to 3.2m. Featuring “Door Learn” and Uni-directional detecting technology,  it’s unique ability to memorise door motion allows the infrared safety curtain to be focused inside the moving door leaf resulting in unmatched pedestrian safety.

Make an enquiry Pricing and Options

The SafePass SSR-3 Infrared and Microwave Automatic Sliding Door Sensor includes the following features:

  • Unparalleled Pedestrian Safety: “Door Learn” technology provides unrivalled pedestrian safety 3-row infrared safety curtain protects pedestrian in the door close area.  Monitored safety system. EN16005 compliant, with emergency escape route versions available.
  • Large Detection Zone: Adjustable detection zone of 4m wide x 4m deep ensures timely door opening for doors approached by shopping trolleys or fast moving traffic.  Ideal for airports, DIY stores, garden centres, supermarkets, shopping centres etc.
  • Energy Efficient: Intelligent unidirectional detection ability reduces door hold open time and building energy loss by as much as 20%.
  • Ease of Installation: All the information necessary to install the SSR-3 sensor is printed on the sensor body.  Pre-configured EN16005 compliant factory settings.
  • Reduced Time Onsite:  Intelligent software prevents false door activations. One piece sensor body construction prevents parts getting lost or broken during installation.



For more information download our product datasheet.

Model SSR-3 Dual Relay Output Pedestrian Door Activation Monitored Safety
Detection Method Microwave Motion Detection K-Band 24.15Ghz Active Infrared Detection
Installation Height 2000mm to 3200mm (6.5ft to 10.5ft)
Sensor Dimensions 265mm (W), 60mm (H), 43mm (D)
Pattern Adjustment
  • Width Adjustment: Microwave Sensitivity Adjustment (Potentiometer)
  • Depth Adjustment: Active Infrared 3 rows 4° to – 8° (Screw)
  • Depth Adjustment: Microwave Antenna Adjustment up/down 5° to 45° in 3° steps
  • Depth Adjustment: Microwave Sensitivity Adjustment (Potentiometer)
Presence Timer 2sec, 30sec, 1min and infinity (Active Infrared 3 rows)
IP Rating 54
Power Supply 12 to 24V AC or DC ± 10%
Power Consumption
  • AC12V-2.5 [VA] (Max), DC12V-150 [mA] (Max)
  • AC24V-2.5 [VA] (Max), DC24V-80 [mA] (Max)
Relay Hold Time Active Infrared: 0.5 sec approx.
Microwave: 1.5 sec
LED Indication
  • Power On = Green
  • Doorway Learning = Green Blinking
  • Active Infrared and Microwave Detecting = Red
  • Microwave Detecting = Blue
  • Active Infrared Detecting = Red
  • Detecting Door = Orange
  • Internal Sensor Error = Green/Red blinks alternately (Fast)
  • Low Reflection Level Error = Green/Red blinks alternately (Slow)
  • Dipswitch settings are being changed = Orange blinking (Fast)
  • Door Hold = Orange blinking (Slow)
Operating Temperature -20°C to 60°C, (-4°F to 140°F)
Weight 254g (0.56 lbs)
Available Colours Black or Silver
Accessories Provided 2.5m, Connection Cable, Mounting Template, Mounting Screws,  Installation Instructions – Detection Area Mask

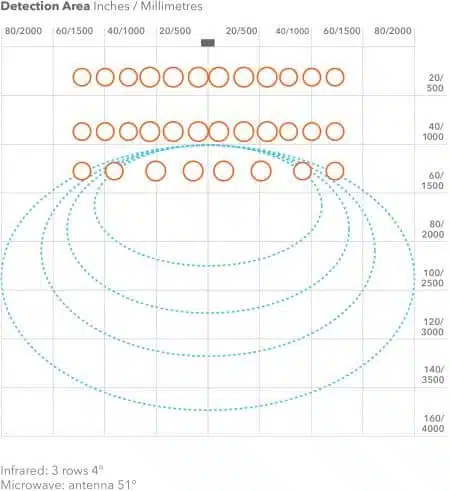

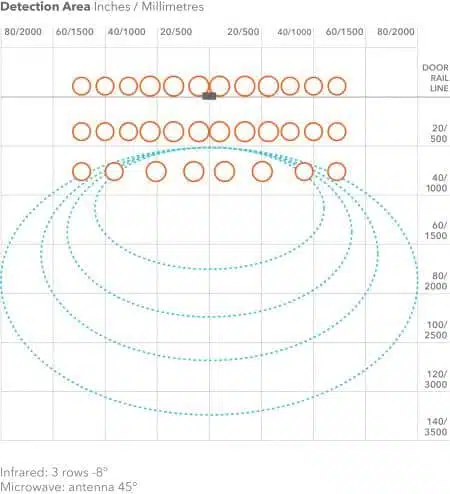

DG SSR DG SSR



For more information download our product datasheet.

For information about installation and operating instructions please download our PDF.
