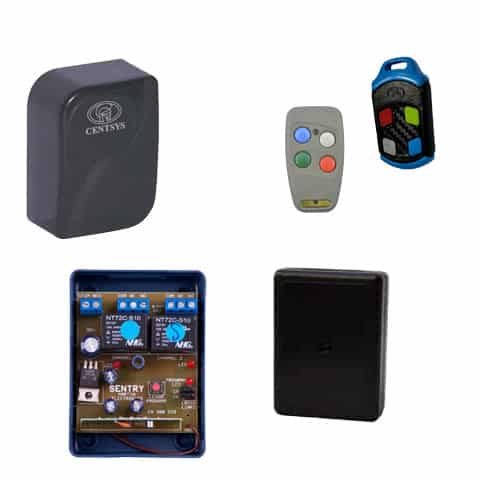

Nova, Sentry and Helix Remote Radio Controls

NOVA Remote Radio Controls offer the same level of security as currently provided by leading brand car manufacturers for immobilising vehicle alarms and activating door locks.



SENTRY Remote Controls provide an alternative to the NOVA remotes.



SupaHelix Multi-User Radio Receivers are used in place of the Nova for large sites with many users.

Remote radio transmitters are a convenient method of controlling many types of equipment, they are most commonly used for automatic gates, automatic doors and vehicles. The remote transmitter can operate at a distance of 50 – 80 metres from the receiver, this can vary under certain conditions.

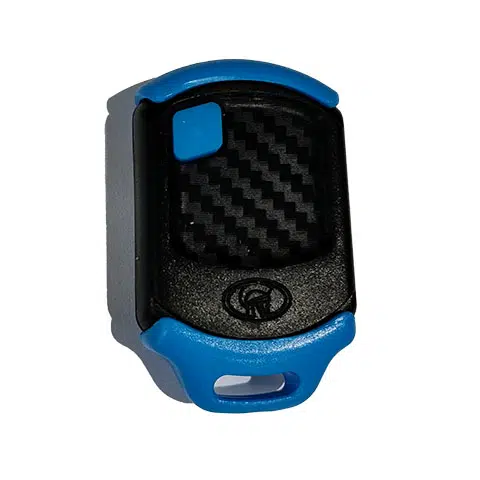

The compact durable ABS housing ensures a long lifespan and the “positive touch” buttons guard against the accidental operation of the transmitter.

NOVA Rolling code technology ensures that each code that is transmitted by the remote is totally and randomly different to the last code transmitted. This prevents unwanted copying of the remote signal and cloning of the remote itself.

The receivers are available with 1,2 or 4 channels. Each channel can be selected for either latching or non-latching output.

The Nova receivers are housed in their own weatherproof housing allowing quick and easy external mounting for improved range.


TECHNICAL SPECIFICATIONS

Specification  Nova Receivers Specification  Nova Transmitter
Supply voltage 12-24vac/dc Operating current 17mA
Quiescent current (@12V DC) 11mA Operating voltage 12/24vacdc
Current(@12V DC)1 channel 40mA Operating temperature -15oC to 50oC
Current (@12V DC) 2/4 40mA (max.) Weight with battery 28 grams
Operating temperature -15oC to 56oC Battery Type GP23 12V
Button Memory 1 Channel  63
2 Channel 250
4 Channel 250





For more information download our product datasheet.

adobe-PDF-icon RADIO REMOTE CONTROLS DATASHEET

adobe-PDF-icon  NOVA CODE HOPPING REMOTE TRANSMITTER INSTRUCTIONS

adobe-PDF-icon  NOVA REMOTE RECEIVER INSTRUCTIONS

adobe-PDF-icon  NOVA REMOTE INSTRUCTIONS



The SENTRY remote radio transmitters are an alternate to our NOVA remotes.  The Sentry remotes have the same features and functionality and can be used instead of the NOVA.


TECHNICAL SPECIFICATIONS

Specifications SENTRY Transmitters
Power source Internal 12V Battery (Type 23A)
Frequency 433.92 Mhz
Transmission power 350mW
Current consumption 9mA active
Operating Temp 0oC to 40oC
Dimensions 65 x 32 x 14 mm

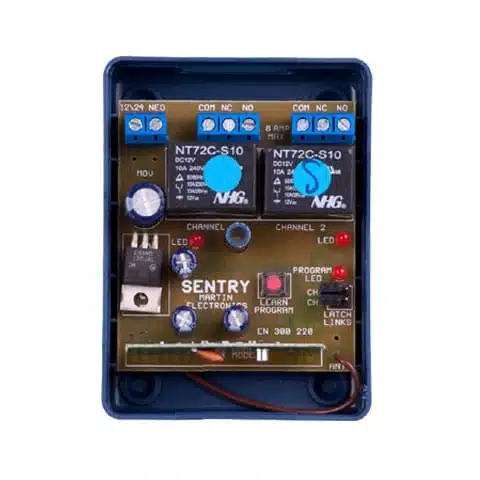

Specifications SENTRY Receiver
Supply voltage 12-24vac/dc
Relay contact 1Amp
Frequency 433.92Mhz
Sensitivity -115dBm
Current consumption 15mA passive and 50mA active
Button Memory 2 Channel  1000
Dimensions 90  x 66 x 95



For more information download our product datasheet.

adobe-PDF-icon RADIO REMOTE CONTROLS DATASHEET

A high-security controller with an intuitive navigation interface that offers a multitude of features makes for an access control system that delivers unmatched convenience, security, event logging and administration.

Each of the three channels can be configured as either an input or an output, and the output mode can be set to be momentary, pulsed or latching. Outputs can be used to activate an automatic gate, switch on a pool pump, arm an alarm or control any number of electrical devices, while inputs are perfect for performing monitoring operations such as tracking how many times a secure door has been opened.

The SupaHelix provides a convenient on board USB host which can be used to back up all users and system settings onto a memory stick within a matter of seconds, and to load firmware just as quickly.

Features of the SupaHelix include:

  • Up to 1000 unique 1 to 10 digit codes for greater security and versatility in a multi user
  • Control three channels
  • Large memory – stores up to 10,000 remote buttons
  • Easily add and delete remote buttons
  • Flexible input/out put channels
  • Transaction logging
  • Easy setup and visual diagnostics
  • Effortless system backup and restore
  • Easy management of individual access
  • Daylight savings time feature


TECHNICAL SPECIFICATIONS

Specifications SupaHelix
Supply voltage 10.5V – 30V DC
Standby current
  • 12V: 100mA (110mA)
  • 24V: 70mA (80mA)
Maximum current
  • 12V: 270mA (500mA)
  • 24V: 230mA (400mA)
Operating temperature -20°C – 70°C
Housing material ABS
Degree of protection IP50
Memory capacity 10,000 individual buttons
Input filter 0-9999 sec in 1 sec increments
Inputs/outputs Maximum three (selectable as any combination of open collector outputs and/or switch-to-negative inputs

For more information download our product datasheet.

adobe-PDF-icon RADIO REMOTE CONTROLS DATASHEET

adobe-PDF-icon SUPAHELIX MULTI  USER RADIO RECEIVER INSTRUCTIONS

adobe-PDF-icon SUPAHELIX SINGLE  USER RADIO RECEIVER INSTRUCTIONS
