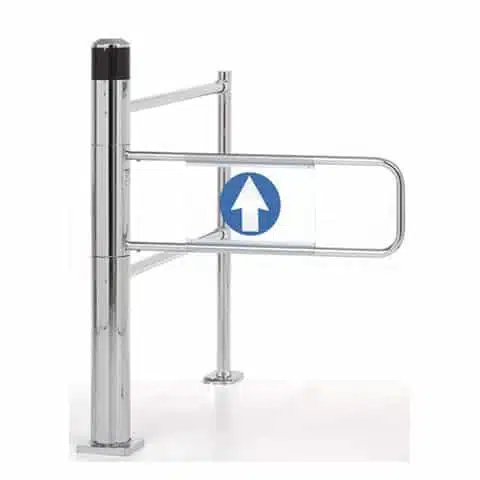

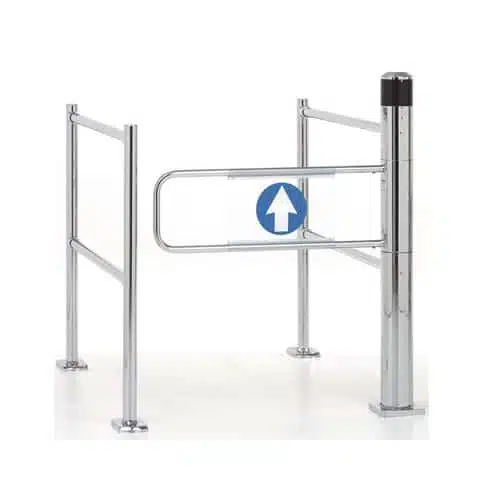

Ecoport Automatic Supermarket Entry Gate

Stylish and functional—German designed and engineered

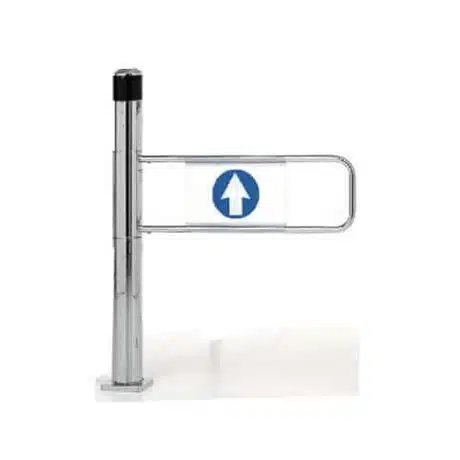

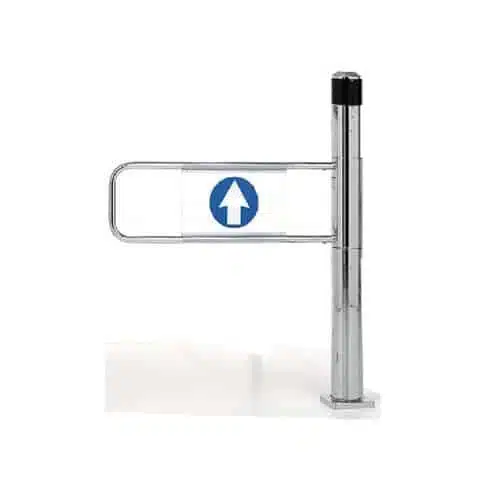

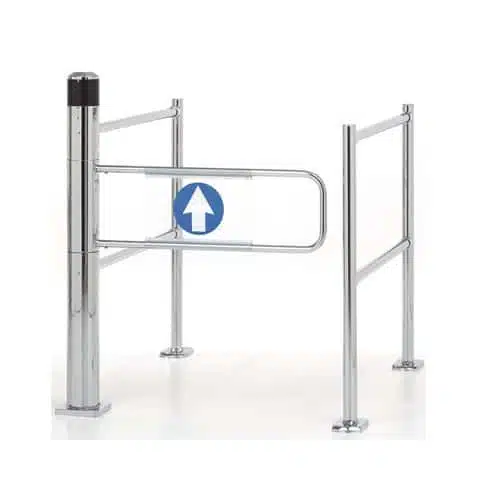

High-quality engineering takes care of all safety and security issues.  Individual and double-gate versions can be supplied with radars or PE beams and safety barriers.



The Ecoport Automatic Supermarket Entry Gates have all the functions required to perform perfectly in all retail environments such as supermarkets, pharmacies, bottle shops, automotive stores, discount stores, gyms and sporting venues.  Reliable operation, durable engineering, barrier-free access for all customers and standard-equipped anti-panic features.

Make an enquiry Pricing and Options

The Ecoport Automatic Supermarket Entry Gates include the following features:

  • Design: The motor column and gate arm are made high quality chrome-plated steel. The drive mechanism is  designed for intensive use and provides a high level of injury protection. Directional signage on the gate arm is made of white plastic or transparent acrylic glass, printed on both sides.
  • Function: Ecoport supermarket gates are usually supplied with either PE beams or radar control to open the gate. Other control options are ceiling-mounted radars, remote push-button control and RFID access control systems.
  • Adjustable radar beam: The radar pattern can be easily adjusted to suit site conditions from 0.5 metres to 2.5 metres.
  • Anti-panic features: In an emergency, the barrier can be opened to allow personnel to exit.



Other Technical Information

  • Control system operating voltage is 24 VDC for the highest level of safety
  • Ecoport systems comply with both national and international safety requirements

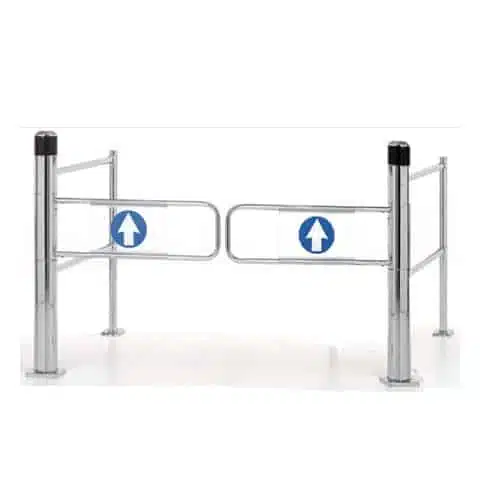

  • Synchronised opening of all double systems using two radars
  • Adjustable opening time from 1 to 16 seconds, the system then closes automatically
  • Direction of opening can be adjusted on-site
  • Power supply from the ceiling is an option
  • Different sizes and design of gate arms are available

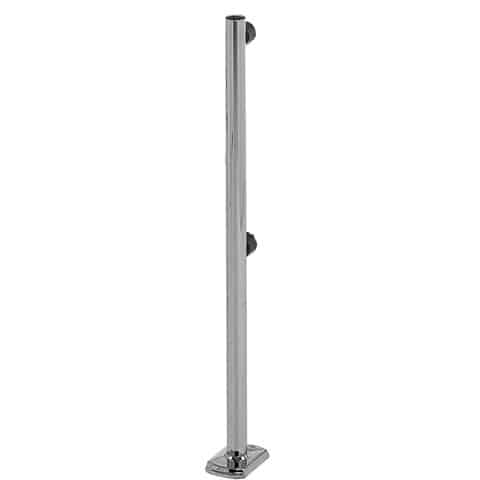

  • Additional posts and barrier rails can also be supplied to suit any application.



For more information download our product datasheet

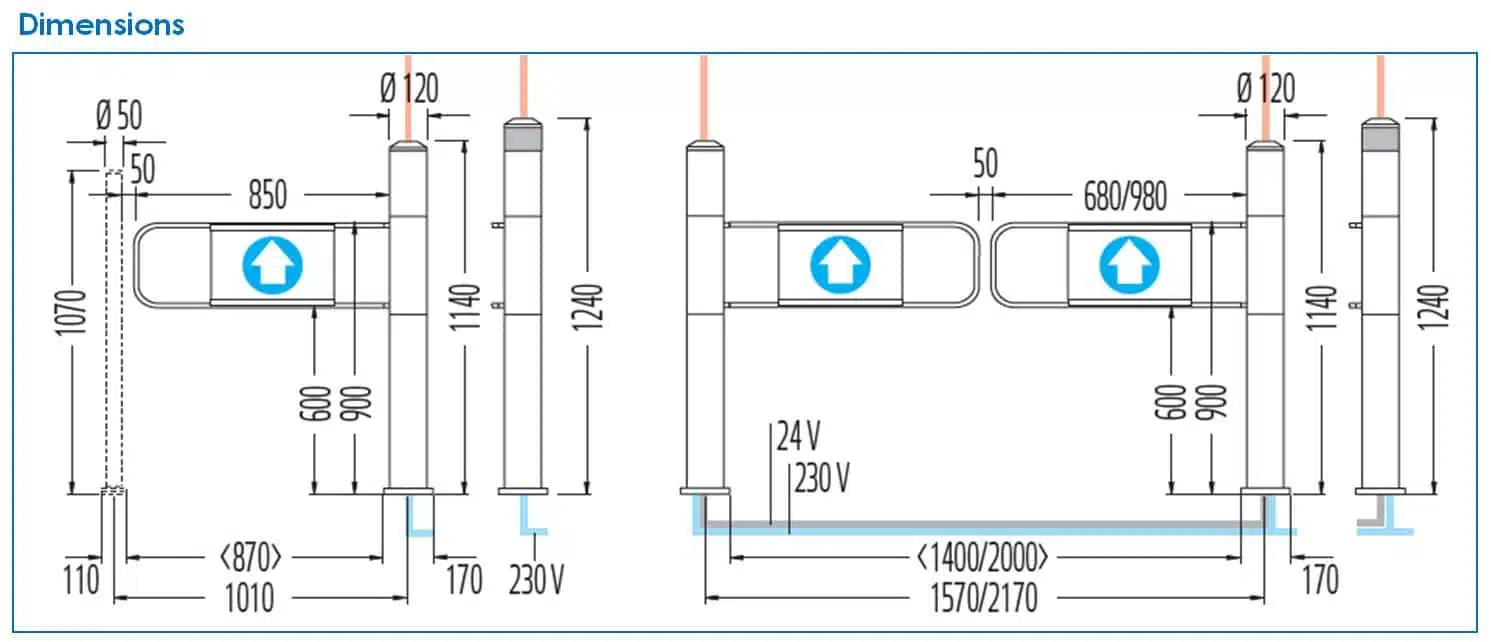

Specifications Ecoport Automatic Supermarket Gate
Clear opening Adjustable 600mm – 980mm
Opening speed 1 second
Hold open time Up to 16 seconds
Duty cycle 100%
Inputs PE beam, radar, push-button, access control
Power supply 240vac
Current 0.64 amps @ 240 v
Environment 10°c – 50°c
IP rating IP20 (internal use only)
Cable Entry Through base or top





For more information download our product datasheet

Optional accessories for the Ecoport Automatic Supermarket Gates include:

Remote-Control

Remote control: The Ecoport Supermarket gate can be operated remotely from behind a  reception desk or by security personnel who have a hand held radio transmitter.

 Photocell Photocell or PE beam: is used to open the gate instead of radar when there are other moving objects close to the gate that might trigger the radar e.g. automatic door or trolley bay.  It is also used in tandem gate systems to prevent the first entrance gate being opened from inside the shop and allowing someone to exit through the entrance.
Barcode-Reader Bar code reader: The increase in the use of self-service check outs creates another security problem because there are normally no exit gates. The Ecoport bar code reader system aims to rectify this issue by keeping the exit gate closed. They will only open when a valid receipt is read by the bar code reader. Roof-mounted-radar Roof mounted radar: where it is not possible to mount the radar on the motor column a roof mounting radar is an alternative. This can cover a large area and adjusted to screen out moving doors or people walking across the gate opening.



For more information download our product datasheet

Download our information about installation and operating instructions





Other Retail and Supermarket Entry Gates

Need to streamline access and exit points, while adding additional security? Rotech’s retail and supermarket entry gates offer an economical, reliable solution.

Our retail security gates are not only used by supermarkets but are also frequently installed in pharmacies, convenience stores, liquor stores, gyms, factories offices, discount stores, and sporting venues to efficiently direct and control the flow of pedestrian traffic through the store, or venue, safely and securely.  Automatic supermarket gates are often used as an alternative to turnstile gates to provide convenient wheelchair access. When connected to an access control system wheelchair users can open the supermarket gate by simply presenting their access card.

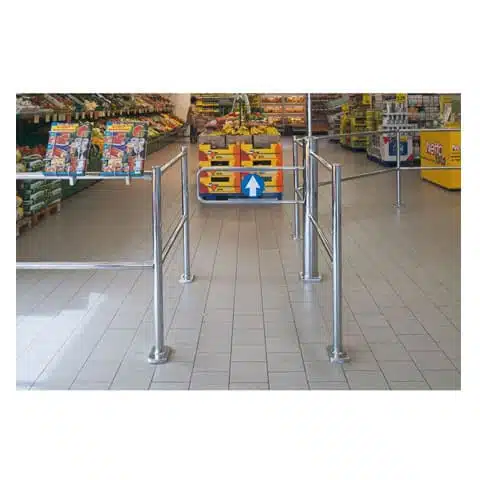

Controlled by photocells, radar or manually operated, our supermarket swing gates can quickly and easily be installed in any retail or commercial setting.  Constructed of chrome-plated steel, our supermarket gates are resilient to trolley damage while being aesthetically appealing.  Matching barrier rails and posts are also available and are configurable to suit a wide range of applications.

Rotech’s retail and supermarket entry gates provide consistent operating reliability and safety at an affordable price.  For more information or advice on our supermarket gates, get in contact with us today.
