Beninca B17 Sliding Gates for up to 1700kg | Industrial Heavy Duty

High Speed Industrial 24vdc — for gates up to 1700 kg – Intensive use – High Quality European Manufactured

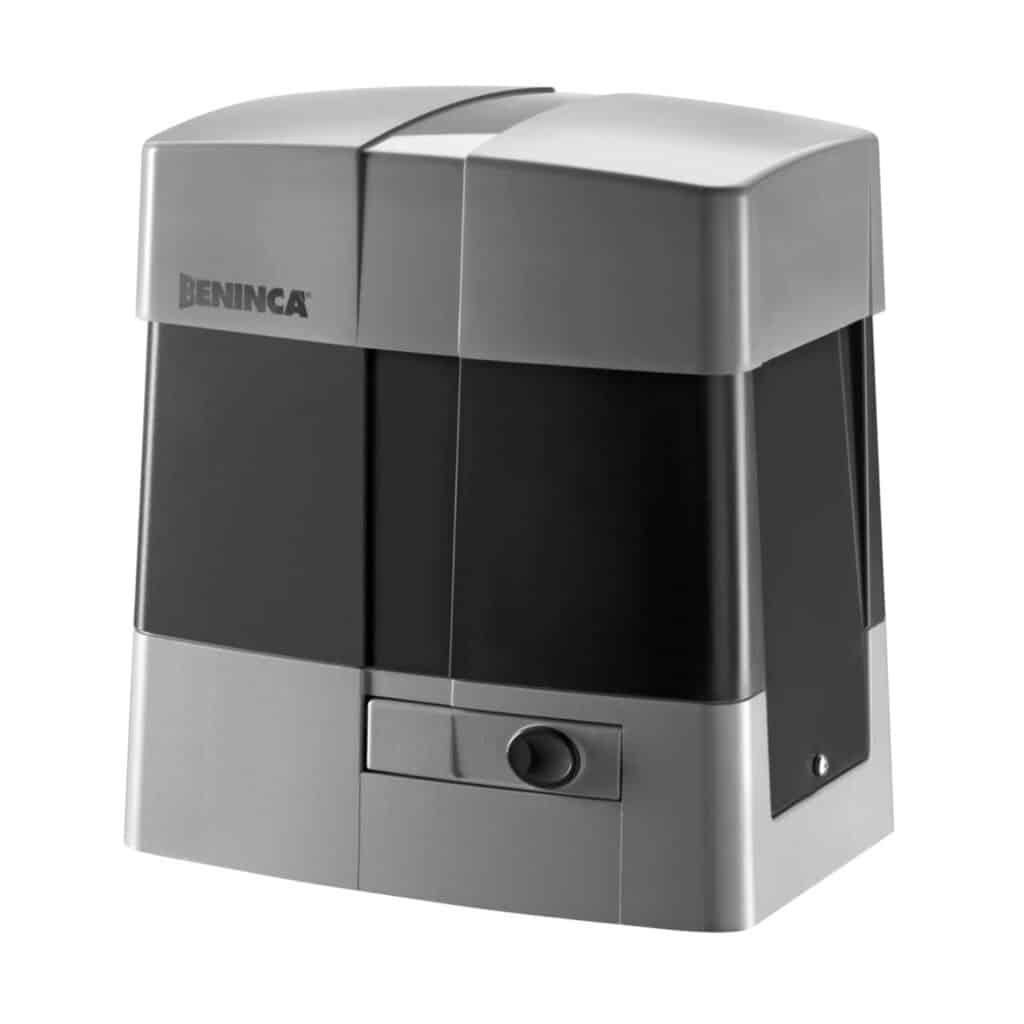

The Beninca B17 sliding gate operator is designed to handle a wide range of commercial and industrial applications.



The B17 is ideally suited to situations with heavy-duty gates requiring fast opening times.



Make an enquiry

The Beninca B17 Sliding Gate Operator includes the following features:



  • Single phase 240VAC geared motor for intensive use

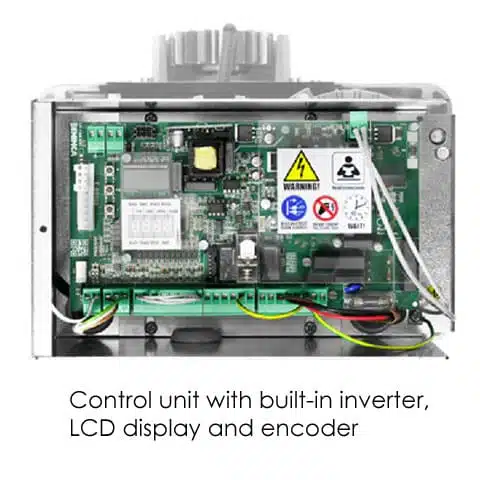

  • The control panel has an integrated inverter, located under the cover on top of the motor
  • The control panel allows the installer a quick and easy way to program numerous functions simply by clicking through the intuitive menu
  • The encoder ensures accurate positioning of the open and close cycles  and controls the ramp up, ramp down operation
  • The diagnostic LCD display aids fault-finding while the control panel monitors safety circuits to ensure correct and safe operation of the gate operator
  • The manual release lever has a safety interlock that prevents the operator from starting while in manual mode
  • The speed is adjustable from 10 to 24 m/min according to gate weight.



Weight (kg)
Speed (m/min)
1,700
17
1,000
20
500
24

For more information download our product datasheet.



Specifications
Beninca B17
Power supply
240Vac  (50-60 Hz)
Motor supply
240 Vac
Max absorbed current
7 A
Max thrust
1880 N
Max operating speed
24m/min
Duty cycle
80%
Protection level
IP44
Operating temperature
-20C/+50C
Lubrication
Oil
Max gate weight
1700 kg
Driving gear for rack
M4 Z18
Weight
21.6 kg



For more information download our product datasheet

Download our information about installation and operating instructions
