SHERLO Wireless Keypad Kit

Weather proof Wireless Keypad for Gates and Doors



Providing secure, reliable access management for buildings, gates, garages and internal doors. Designed to support up to 1, 000 unique PIN codes with wireless code-hopping and a waterproof housing, it delivers flexible, easy-to-configure control with 9 RF output channels and holiday/wrong-code lockout functions.

Make an enquiry

The Sherlo Wireless Keypad is designed for secure access control of buildings, gate/ garage entrances, internal doors and can be programmed with up to 9 RF Channels to control different receivers.

The Sherlo Wireless Keypad and Receivers features include:

  • It can easily be program from a PC and then saved onto the Keypad itself with a microSD card
  • The keypad is battery powered and has a 12V DC wired input connector
  • Multiple Keypads can be paired to a single receiver and multiple Gates can be paired with one Keypad (i.e.: Pedestrian gate next to vehicle gate)
  • The kit comes with 2 Chanel receiver kit with a range of 150m and the ability to add 40 remotes (optional).

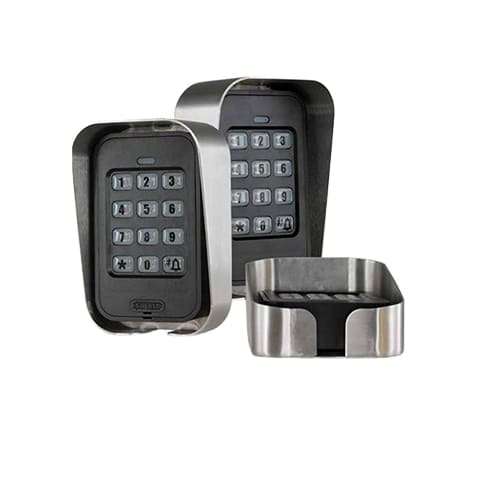

  • Water proof  housing: brushed Stainless Steel waterproof housing (sold separately)



For more information download our product datasheet.

SHERLO Wireless Keypad Technical Specifications:

Specification
SHERLO Wireless Keypad
Battery supply voltage
2 x AA Alkaline batteries
(voltage range: 2.4V - 3.3V)
External power input
10V-14V DC input
Wireless range
100m line of sight
30m indoors
Operating temperature
-10°C to +55°C
Operating humidity
0 - 90%
Outputs
9 Channels + 1 Doorbell output
Rating
IP55
Battery life
2-3 years (depandent on usage)
Usage life
60,000 activations
Code length
1 - 10 digits
Memory capacity
1,000 unique codes

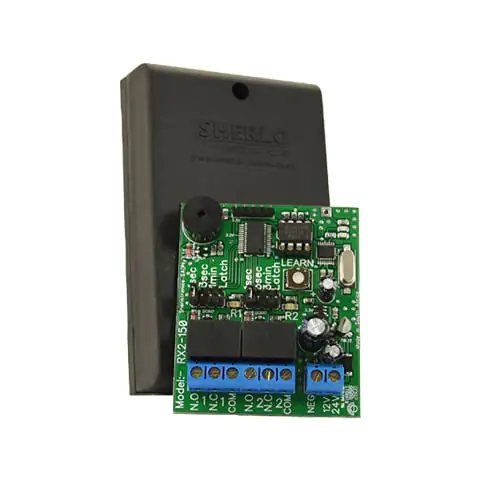

SHERLO 2-Channel Receiver Technical Specifications:

Specification
SHERLO 2-Channel Receiver
Model
RX2-150
Encryption type
Code hopping
Transmission frequency
403MHz (Local) 433MHz(Export)
Transmission method
OOK
Modulation
AM
Transmission range
150m "Line of sight"
Memory capacity
40 remotes per relay
Voltage range
10V to 16VDC
Standby current consumption
+/-14mA 10%
Current consumption all on
+/-65mA 10%
Operating temperature
-3°C to 49°C
Dimensions (lxblh)
100 x 60 x 25mm
Gross weight
78g packed

For more information download our product datasheet.

Download our PDF for information about installation and operating instructions.
