Sector SW2 12vdc Stainless Steel Automatic Boom Gate

High speed – Rated for up to 3,000 operations a day – Battery driven – Solar option -– Electronic safety sensing – Stainless steel cabinet

Engineered to deliver reliable, fast access control in high volume situations, the Sector SW2’s low voltage 12 vdc motor and solar option make it suitable for situations where it is difficult to get mains power.

The Sector SW2 offers many easy to set up programmable features such as the ability to adjust the boom’s opening and closing speeds to suit varying conditions.

The electronic safety sensing function is an important safety feature of the Sector DC range and the ability to add other types of sensors such as PE safety beams, light curtains, make it an excellent choice in situations where pedestrian safety is critical.

Make an enquiry Quick Quote

FOR MORE INFORMATION ON OUR PRODUCTS AND SERVICES,
NEED A QUOTE OR HAVE A QUERY
CALL US ON (07) 3205 1123 OR SUBMIT THIS FORM.

Name*
Product Name
Email*
Phone Number*
Message*
Are you a*
- Company
- Private
Company Name
Website
Is the road sealed?*
- Yes
- No
How wide is the road?*
Approx number of operations per 24 hours*
Postcode for site*
FOR SECTOR AUTOMATIC BOOM GATES ONLY Please provide the following additional information if you require a quote for solar powered operation.
Do you have full sunlight all day?
- Yes
- No
Is there any other equipment to be connected?
- Yes
- No
CAPTCHA

With an in-built battery back up system these boom gates can work for up to 2 days without mains power – ensuring your security isn’t compromised. The Sector boom gates are able operate on mains power or solar power without any modifications. This makes them particularly suitable for remote areas like national parks.

Engineered to deliver reliable, fast access control in high volume situations the Sector SW2 DC traffic barriers also allow you the flexibility to adjust the boom’s opening and closing speeds to suit varying conditions – improving safety by closing slower while maintaining a higher opening speed. The electronic safety sensing function is an important safety feature of the Sector DC range and the ability to add other types of sensors such as PE safety beams, light curtains, make it an excellent choice in situations where pedestrian safety is critical.

The Sector SW2 DC 12vdc Boom Gate includes the following features

Reliable, high volume operation: The Sector SW2 DC boom gate is powered by a custom built 12vdc motor and gearbox which is rated for up to 3000 operations per day with a life cycle of 5 Million operations.
Consistent, reliable and safe operation: the adjustable speed on opening and closing combined with damping in both end positions, ensures smooth operation and prolongs the life of the Sector SW2 DC boom gate.
Electronic safety sensing: the boom gate detects and reacts to any obstruction, with the provision to include loop detectors and PE beams the safety of pedestrians and vehicles is assured.
Battery back up is standard: Up to two days standby when no mains power available different batteries and solar panels may be required subject to the number of operations.
Solar Power. The Sector SW2 DC boom gate is configured to operate on solar power without any modifications to the controls.
Tough, durable operator casing: the standard cabinet is 430 stainless steel and powder coated with white high UV resistant polyester powder, the base of the cabinet is made from 3 mm hot dipped galvanised steel.

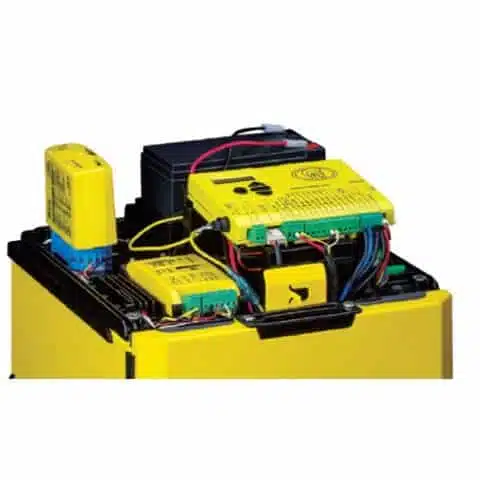

The SectorSW2 DC Controller includes the following features

Easily configurable: the numerous operating parameters are simple to set up using the LCD screen and buttons on the face of the controller.
365 day timer: the timer allows you activate any of the inputs that operate the boom gate or have them time barred at any time or date you choose up to 12 months in advance.
Multi-channel reciever: the inbuilt Nova receiver can automatically learn up to 500 transmitters and individual transmitters can be selectively added to its memory or deleted.
Status Indicators: the controller provides status indication for boom pole position, mains power, low battery and collision detection.
System back-up option: a plug in memory module is available to record all your settings in case of accidental damage to the boom gate.
Protective housing: the intuitive, user friendly controller is housed in a sealed enclosure with a removable mounting tray that allows for quick and easy installation.

For more information download our product datasheet.

SECTOR SW2 12VDC AUTOMATIC BOOM GATES DATASHEET

SOLAR POWERED EQUIPMENT DATASHEET

Sector SW2 DC Boom Gates	3 metre	4 metre	6 metre
Input Voltage	240 vac
Motor Voltage	12vdc
Current Consumption (Mains)	170mA
Boom Pole Length	1.5m	4.5m	6m
Boom pole raise time	3 Sec	3 Sec	6 Sec
Manual Override	Allan key operated from outside unit
Maximum operations per day	3000
Operations in standby battery (Full day)	3000
Collision Sensing	Electronic
Temperature	-15°C – 50°C
On-board Receiver Type	Nova Rolling Code Multichannel
Stainless Steel Housing	40 stainless steel 1.6 mm wall thickness White polyester epoxy coating Base frame – 3mm hot dip galvanised steel
Housing Protection Rating	IP54
