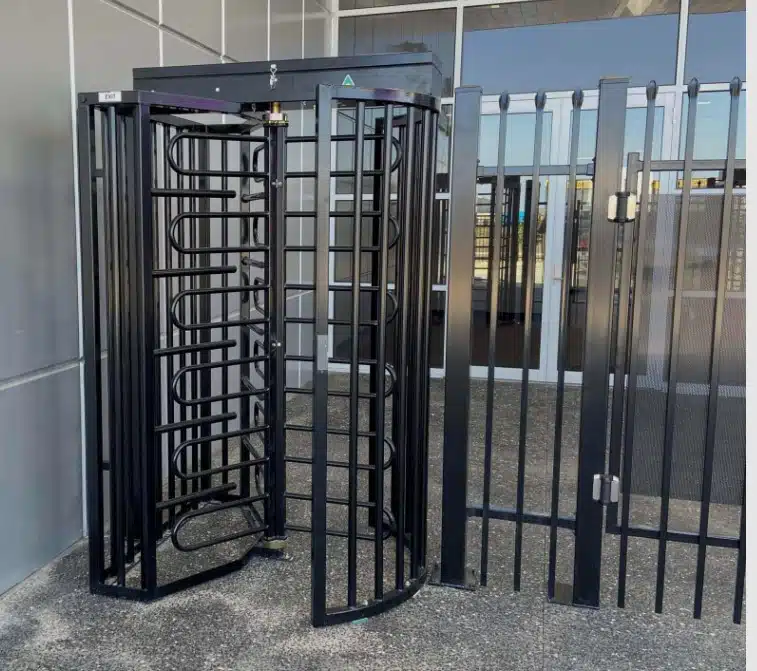

F21 Full Height Australian Made Security Turnstile

The F21 Full Height Turnstile is a bi-directional security turnstile with a galvanised frame and rotor, with stainless steel is an option available.  Its soft start-and-stop mechanism ensures safe, smooth operation for all users.

The F21 is the first Australian-made full height turnstile of its type, engineered for sites that demand maximum security and reliability. Its bi-directional, galvanised frame and rotor come backed by a 5-year conditional guarantee, and a soft start/stop mechanism keeps operation safe even in high-traffic use.

Built-in battery back-up keeps the F21 running for up to 3,000 cycles during a power outage, triggering a 95dB warning siren so security teams are alerted immediately. For remote or off-grid sites, an optional solar kit and portable base with forklift pockets make the F21 easy to deploy anywhere – from construction sites to mining operations.

Compatible with all major access control systems, the F21 can be configured with an anti-climbing roof, wide access gate, and card reader mounting brackets to suit your site’s exact requirements.



The F21 Full Height Turnstile include the following features and options:

  • The mechanical drive system has a 5-year conditional guarantee
  • Battery backup keeps operating for 3000 operations
  • Customised Security setting
  • Card reader mounting brackets suitable for reader and intercom (option)
  • Anti-climbing roof (option)
  • Powder coat finish over galvanised in primary colours (option, adds approx. 1/2 week to production time)
  • Status indication for security monitoring (option)
  • Portable base with forklift pockets for easy transportation (option)
  • Solar power for remote sites or where there is no mains power (option)
  • Wide pedestrian gate with Mag Lock or Door Handle (option)



For more information download our product datasheet



Specification
F21 Full Height Turnstiles
Throughput
15 people per minute
Duty Cycle
100%
Current
1 Amp @ 240 VAC
Mechanism
Mechanical pawl and rollers non-reversible after 33°
Solenoid
12V DC
Power failure options
Locked entry – free exit
When battery back up is not connected
Locked exit – free entry
Locked in both directions
Freewheel in both directions
When battery backup is connected
Operates as normal for 3000 operations



For more information download our product datasheet



Download our information about installation and operating instructions
