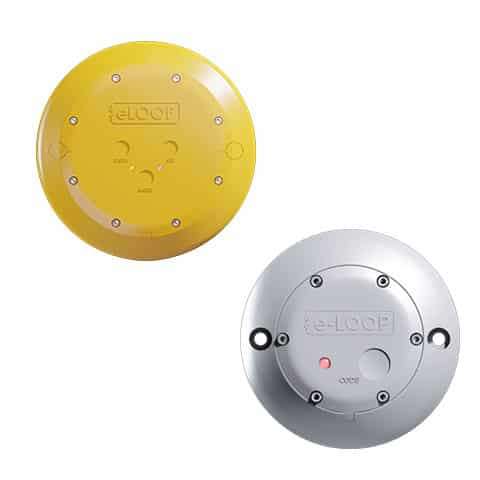

E-LOOP COMMERCIAL and LIGHT INDUSTRIAL KITS

The e-LOOP Commercial and Light Industrial Kits are wireless vehicle detection solutions using magnetic field detection technology.



The e-LOOP is a convenient and reliable alternative to traditional wired inductive loops detectors. Easy to install in minutes and removing the need for ground loops and wiring. It is low maintenance and reliable for years with 6 to 10 years battery life.

Make an enquiry

The e-LOOP wireless vehicle detection by Microtech Designs replaces traditional wired inductive loops, saving time and money while increasing reliability.

Kit contents include:

• 1 x e-Loop wireless detection module
• 1 x 12–24VDC single channel transceiver (or option LCD e-Trans 200 transceiver)
• 2 x Dyna bolts

The e-LOOP Commercial & Light Industrial Radars include the following features:

Feature

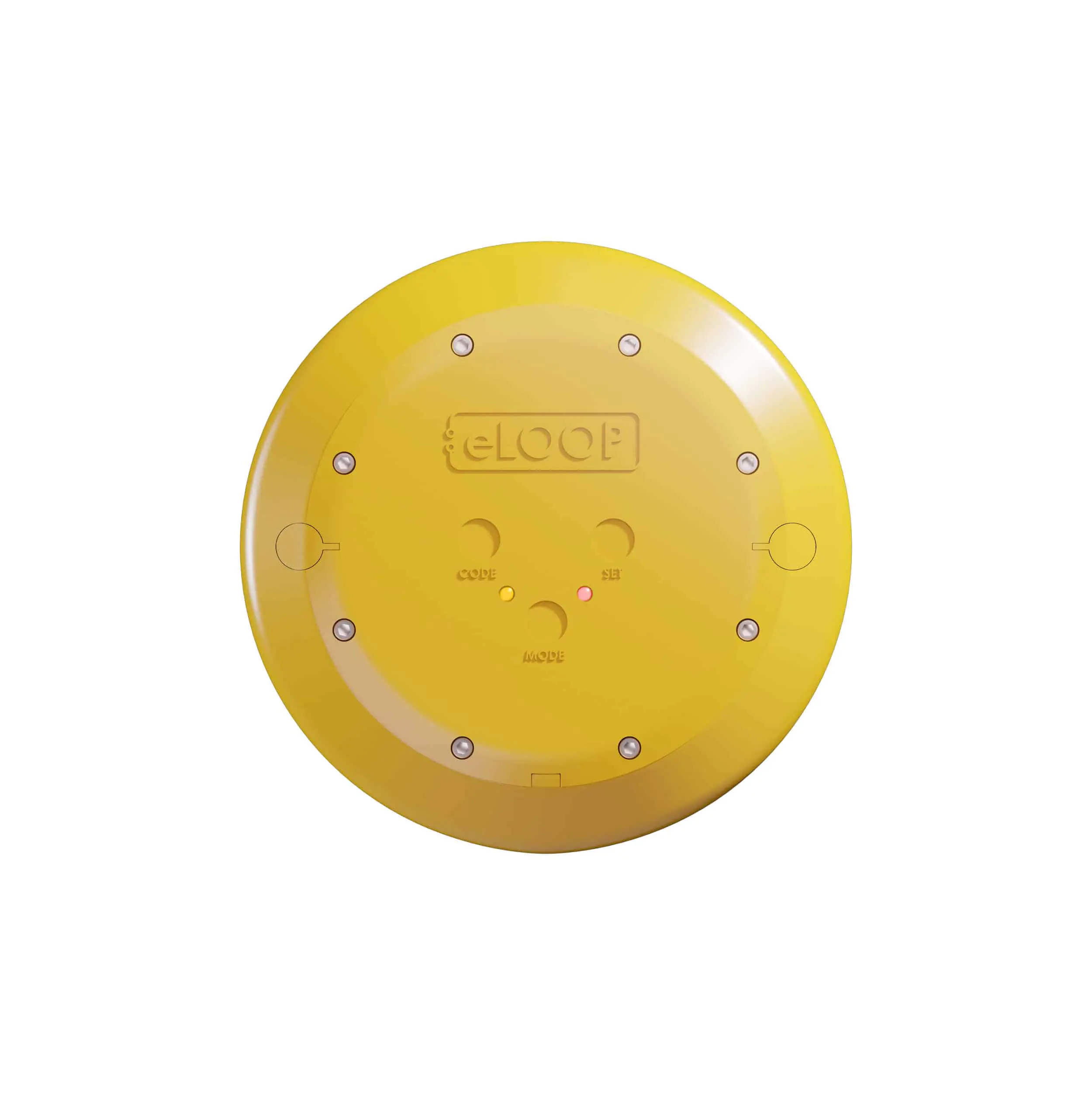

e-LOOP Commercial Radar Kit (ELOOC)
e-LOOP Light Industrial Radar Kit (ELOOLI)
Magnetic Field Detetion
Yes
Yes
Static Load Capacity
12 tonnes
6 tonnes
Battery
10600mA battery
up to 10yrs battery life
3000mA AA 1.5V lithium x 2 batteries
up to 6yrs battery life
Compact Profile
28mm (H) x 220mm diameter
28mm (H) x 220mm diameter
Range
50m
50m
Security
128 bit encryption

For more information download our product datasheet.



The e-LOOP Power, Physical & Environment Specifications:

Specification
e-LOOP Kits
(ELOOC & ELOOLI)
Power
4 * 3.6V 2700ma
Dimensions
220*220*26mm
Weight
1000g
Environment
Designed for above ground mounting
IP68 ingress protection
Operating Temp
-40C - 80C
Standby Power
14µA
Activation Power
50mA

The e-LOOP Radio Specifications:

Specification
e-LOOP Kits
(ELOOC & ELOOLI)
Frequency
433.39 MHz
Modulation
FSK
Bitrate
9.6kbps
Bandwidth
250 hKz
Antenna Type
PCB
Nominal Output Power
10 dBm
Receive Sensitivity
-126.2 dBm
Security
128-Bit AES Encryption
Spurious Emmissions
*30 - 1000MHz: <-56 dBm
*30 - 1000MHz: <-56 dBm
*30 - 1000MHz: <-56 dBm
*30 - 1000MHz: <-56 dBm

For more information download our product datasheet.



Installation in 3 simple steps:

  1. Code in the e-Loop
  2. Secure the e-Loop to the driveway
  3. Calibrate the e-Loop… and you’re ready to operate in less than 15 minutes.

Save many hours of installation timecompared to wired loop systems

For information about installation and operating instructions please download our PDF.
