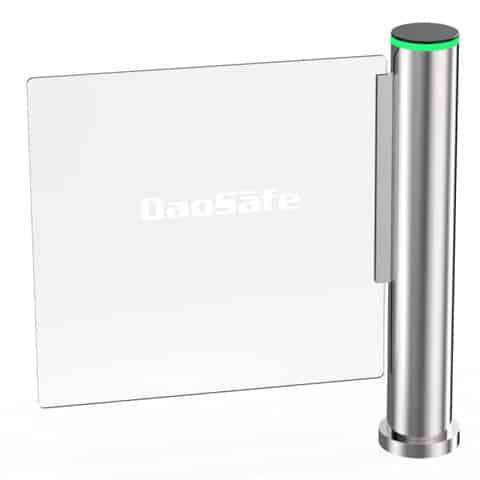

DAO8000 Single or Double Glass Speed Gate

Stainless Steel (304) cylinder, bi-directional glass speed gate



DAO8000 Single Glass Speed Gate features a sleek, ultra-slim 168mm cylindrical design with a full-height single-piece plexiglass door adjustable from 600mm to 900mm, ensuring wheelchair accessibility. Operating at up to 35 people per minute, it integrates seamlessly with all access control systems via dry contact, relay signal or RS485, includes LED status indicators, and can be configured as synchronised double gates with up to 1850mm passage width.

Make an enquiry

The DAO8000 Single Glass Speed Gate key unique features:



  • High-quality Stainless Steel (304) for durability and corrosion resistance

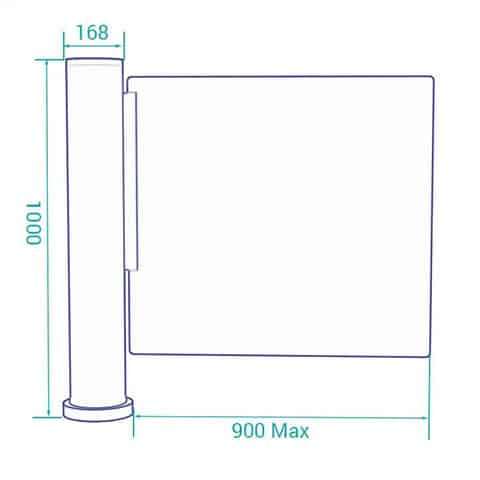

  • Slim cylindrical design with a diameter of only 168mm
  • Single-piece, full-height plexiglass door for a clean and modern appearance
  • Adjustable passage width from 600mm up to 900mm, allowing wheelchair access

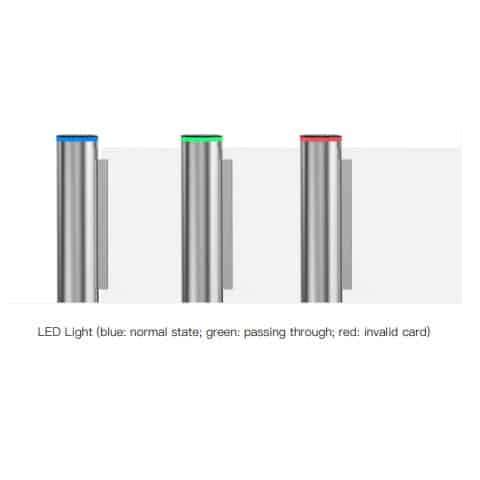

  • LED strip arm indicators for clear user guidance:
    – Blue: Power on
    – Green: Entry permitted
    – Red: No entry
  • Power supply: AC220V/110V, 50/60Hz
  • Throughput capacity of up to 35 people per minute
  • Compatible with all access control systems via dry contact, relay signal, or RS485 output

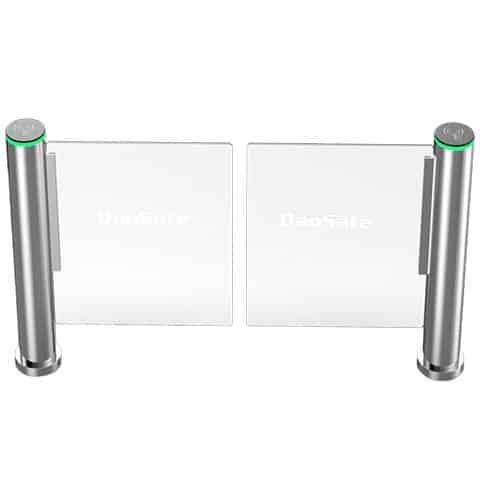

  • Can be configured as double synchronised gates with a maximum passage width of 1850mm
  • Supplied with a 3-year warranty (parts only)

For more information download our product datasheet

Specification
DAO8000 Single Glass Speed Gate
Type
Cylinder Speed Gate
Framework Material
Cabinet: 304 stainless steel
Arm Material
Plexiglass 10mm (standard)
Tempered glass 8mm/10mm (optional)
Top Cover Material
Plexiglass black (standard)
Aluminium alloy (with infrared sensor)

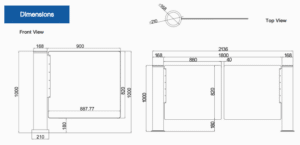

Frame Dimension
168(W)*1000(H)mm
Net Weight
45kg/pcs
Passage Width
One unit: 600mm - 900mm
Two unit double open: 900-1800mm
900mm (recommended disabled lane)
*Wider width increases arm size & motor load
Arm Height
1000mm - 1800mm
For 1800mm(H) + 1200mm(W),
need to use hollow glass arm to reduce wind resistence
MCBF
10 million
Power Supply
AC220V/110V, 50/60Hz
Operation Voltage
24V DC
Power Consumption
40W
Operation Temperature
-20~75C (can be customised)
Operation Humidity
0~95% (no freeze)
IP Level
IP54 (standard)/IP65 (can be customised)
Working Environment
Indoor/Outdoor
Flow Rate
35 people per minute
LED Indicator (Strips)
Blue: power on, Green: entry, Red: no entry
Passing Direction
Single directional/Bi-directional
Emergency
Automatic arm open when power off
Communication
Dry contact, Relay signal, RS485
Flexibility
Integrate with any access control
