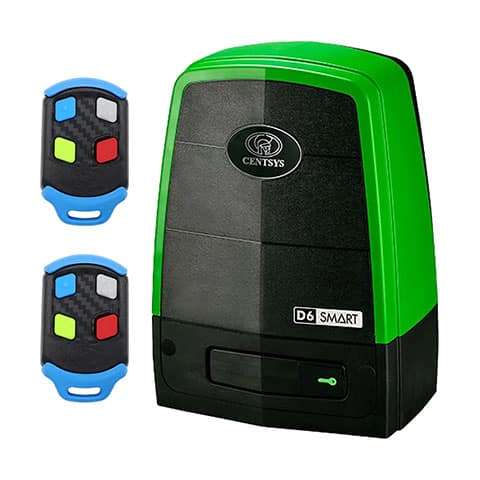

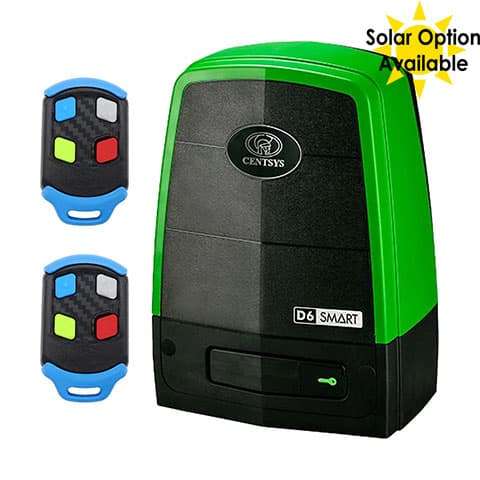

Fast, smart and tough, the D6 SMART is the fastest operator in its class. Manufactured to the highest standards by a leading European gate automation and access control company, with over 35 years of experience and hundreds of thousands of operators installed worldwide, it is built for many years of reliable, efficient operation.
The D6’s robust mechanical design features include:
- Battery backup as standard – provides peace of mind during storms or other power failure situations
- Independently adjustable opening and closing speeds – help to reduce accidents and damage to the gate
- Individually configurable inputs and outputs
- A convenient and intuitive single-action manual release
- Solar Power (Optional): for situations where mains power isn’t readily available the D6 SMART operator will work on solar power without any modification.
Advanced diagnostics allows for faster installation
The diagnostics measure and monitor many aspects of the operator’s performance, including battery condition and status of connected external accessories. The diagnostic function reduces installation time and makes it easy to identify faults.
Operation and intelligent logging and reporting
The D6 SMART can give users feedback about the gate operator’s overall functioning. Previously unavailable, users now have useful information about the operation of their sliding gate sent directly to their mobile phone. Phone alerts keep users updated on events such as:
- the last remote control button pressed
- the condition of the battery, low voltage
- the gate status and the speed at which the gate is running
- the status of external accessories connected such as PE beams and loop detectors;
- if the motor is being tampered with.
Solar Power Considerations:
As each solar power requirement will differ from one configuration to another please contact Rotech Automation for further advise on the solar panel and batteries capacity required for your gates.
For more information, download our product datasheet.
| |
| 90V – 240V AC +/-10% @ 50Hz |
Current consumption (Mains) | |
DX1 Battery charger current output | |
Duty cycle – Mains present (2,3) | |
| |
| Battery-driven (Standard Capacity 2x12V) |
Current consumption (motor at rated load) | |
Input/Output sink currents (Max accessory current draw) | |
| |
| |
Motor push force – starting | |
| |
| |
| |
Gate speed (varies with load) (4) | Up to 36m/min (600mm/sec) @ 17kgf |
| Lockable with key release |
Operations in battery backup mode with 7.2Ah batteries | |
| 209 (Power Saving) / 102 (Normal) |
| 183 (Power Saving) / 87 (Normal) |
| |
Operating temperature range | |
| Code-hopping multichannel receiver with selective add and delete |
Receiver code storage capacity | |
| |
| |
Mass of unit packed (with standard kit, but excl. rack and battery) | |
Packaging dimensions (with standard kit, but excl. rack and battery) | 325mm wide x 244mm deep x 445mm high |
| |
1. Can operate off a solar supply, consult your local dealer for assistance | |
2. Based on 25°C ambient temperature and unit not in direct sunlight | |
3,. Based on a motor push force of less than 50% of rated (Starting and Running forces) | |
4. Opening and closing speeds can be configured to run slower depending on the requirements of individual installations | |
5. Based on 7Kgf. Gates requiring up to 17Kgf will result in fewer operations | |
6. Based on 4m gate, excluding all accessories | |
7. Multiple buttons per remote can be used | |
For more information, download our product datasheet
Download our installation and operating instructions
Get the SMART experience with the MyCentsys Pro mobile app for INSTALLERS and USERS!
INSTALLERS – effortless operator set-up and gate management using your smartphone. The MyCentsys Pro app makes setting up and configuring the operator’s many features quick and easy. Set the gate limits, speed, automatic closing and unique profiles for users, with just a few taps.
USERS – take control of your gate and/or garage. The MyCentsys Remote is a feature-rich interface for all gate access and automation requirements. It seamlessly integrates with both SMART and ULTRA solutions, providing live device states and health information, push notifications and the ability to trigger actions, all in one convenient App.
