ClearWave Pedestrian Touchless Automatic Door Activation Switch. Activation from 400 mm

$235.36 (Incl GST)

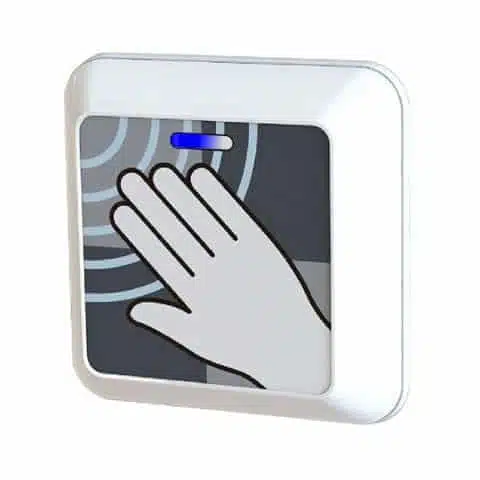

The SafePass ClearWave is a sleek, water resistent, hygienic, touchless microwave automatic door activation switch.

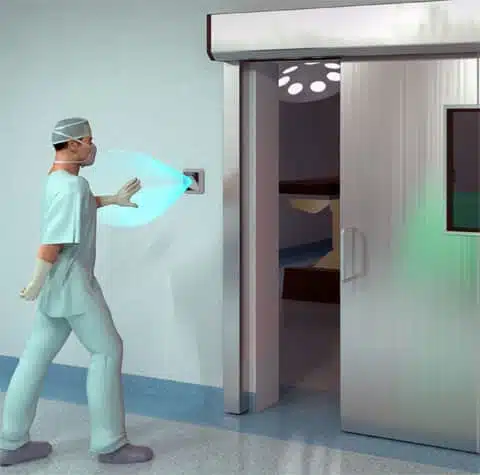

Featuring non-touch microwave motion detection technology the ClearWave door activation switch has been designed for installations where hygiene is of paramount importance such as white room, food processing and chemical industry applications.



Make an enquiry
SKU: 90025

The SafePass ClearWave Long Range Touchless Door Activation Sensor includes the following features:

  • Hygienic Door Activation Non-touch switch, ideal for applications where hygiene is of paramount importance such as white rooms, food processing, hospital and chemical industry applications.
  • Versatile Detection distance can be adjusted between 5 and 40cm to suit all intended applications. Toggle or Pulse mode settings possible. Three faceplate stickers included to suit a variety of installation environments.
  • Sleek Water Resistant Design Extremely small, light and attractive. Water-resistant foam gasket protects the switch from water damage.
  • Reduced Time Onsite Completely flush mounted for zero wall damage. No requirement for backbox removing the need for time-consuming wall construction.



For more information download our product datasheet.



Specification
ClearWave Pedestrian Door Activation
Detection Method
K-Band 24.125Ghz – Microwave Motion Detection
Detection Range
5~40cm ±3~5cm
IP Rating
IP54
Power Supply
12 to 30V DC, 12 to 24V AC
Current Consumption
40mA(DC24V)
Power
<1.4W
Transmitting Power
16 dBm
Relay Output
1C Type Relay (one Switching Contact)
Output Hold Time
1.2sec (PULSE mode)
Max. Switching Voltage
125V AC / 60V DC
Max. Switching Current
1A
Min. Detection Speed
0.03m/s
Sensitivity Adjustment
Potentiometer Low to High
Operating Modes
Toggle or Pulse
LED Indication Detection
Detecting = Blue
Power On = OFF
Initialization after power on = Blue Flashing
Operating Temperature
20°C to 60°C, (-4°F to 131°F)
Operating Humidity
0 to 90%
Weight
80g 160g
Available Colours
Cream
Accessories Provided
Label B: Wheelchair Logo
Label A: Hand Logo
Label C: Wave to Open Text
Cable and Installation Instructions

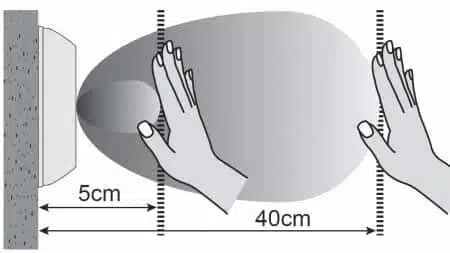

ClearWave Detection Range



For more information download our product datasheet.

For information about installation and operating instructions please download our PDF.
