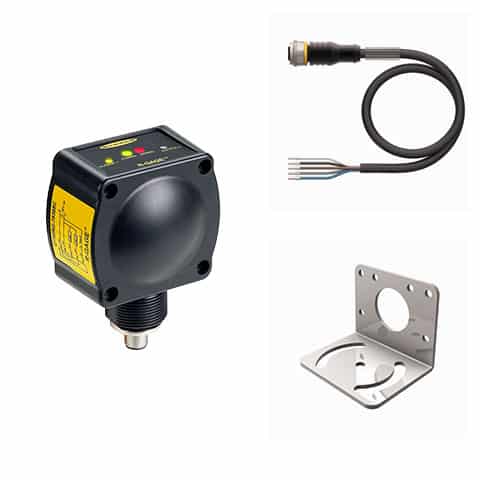

Ban50 Radar 24m

The Ban50 delivers long-range, high‑sensitivity radar detection -perfect for vehicle presence and collision avoidance in harsh outdoor applications.



Operating in the 24 GHz ISM band using FMCW (time-of-flight) technology, the Ban50 detects both moving and stationary objects up to 24m.

Make an enquiry

The Ban50 Radar is an ideal solution for long-range vehicle detection, enabling automatic boom gate activation and free exit control. Designed for industrial vehicle zones, it enhances safety and reliably detects obstacles even in harsh or highly reflective environments.

The Ban50 Radar includes the following features:

  • Adjustable sensing range: from 2m to up to 24m
  • Reliable operation in all conditions: Unaffected by wind, rain, snow, fog, high/low temp or sunlight
  • Easy DIP-switch setup: Configure range, sensitivity, and output behavior quickly – no PC needed
  • Flexible output options: Bipolar NPN/PNP outputs available as Normally Open or Normally Closed
  • Telecom approved for Europe, UK, Australia, New Zealand, China, and Japan
  • Rugged IP67 housing: ABS/polycarbonate enclosure rated for −40°C to +65°C



For more information download our product datasheet.



Feature
Specification
Operating Frequency
24 GHz FMCW ISM band
Sensing Modes
Adjustable-Field (AF): up to 24m
Beam Angle (HxV)
90° x 76°
Housing Rating
IP67 (ABS/Polycarbonate)
Supply Voltage
12-30V DC
Outputs
Bipolar NPN/PNP, selectable NO/NC
Response Time
Typically 30-50ms (configurable via DIP ~30-600ms)
Operating Temp.
–40°C to +65°C
Connection

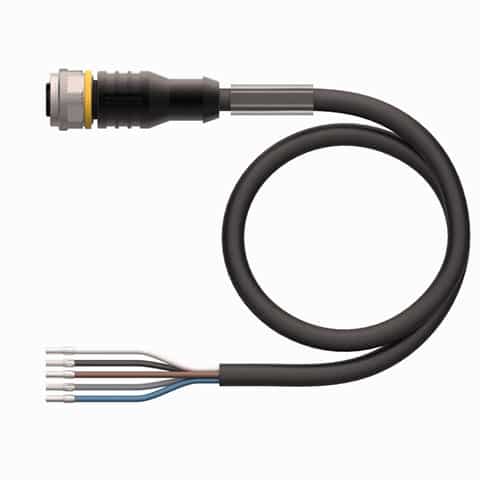

M12 5-pin Quick-Disconnect (QD) or 2m flying leads cable
Adjustments
DIP switch selection
Window Compatibility
Can be mounted behind glass or plastic (~20% signal reduction)

For more information download our product datasheet.





For information about installation and operating instructions please download our PDF.
