SafePass SSS-5 Infrared Automatic Swing Door Safety Sensor

$644.25 (Incl GST)

Full Swing Door Safety with only 1 PCB unit.



Available in three lengths the SafePass SSS-5 will provide 800 – 1,000mm of safety coverage along the swing door width – 900mm of door face safety at an installation height of 2.2m. The SafePass SSS-5 Automatic Swing Door Safety sensor, with 6 spots of detection per PCB unit, ensures pedestrian safety levels exceeding EN16005 standards.

Make an enquiry
SKU: 9002

The SafePass SSS-5 Infrared Automatic Swing Door Safety Sensor includes the following features:

  • Maximise Pedestrian Safety: Six spot, 800-1,000mm wide, infrared safety curtain with 1 PCB unit.  Safety beams can be focused very close to the ground for maximum safety.  Externally and Internally monitored safety system. Available in 3 different lengths (360mm, 692mm and 1,023mm).
  • Save on Costs: No need to use 2 PCB units in one sensor housing to ensure compliance with EN16005
  • Ease of Installation: Simple push button setting of sensor detection distance. Only one PCB units required for full safety on each side of the door. Removable terminal block simplifies wiring, and allows installers to use their own desired cable length. Large, robust, internal components aid quick installation.  Removable wiring terminal block and push button detection distance settings significantly reduces on-site installation time.
  • Strong & Robust: Solid, tough sensor body design not susceptible to vandalism or damage during installation
  • Performance Reliability: The SSS-5 performs reliably on all floor surfaces and reflective environments. 5-Year Warranty against manufacturing defects. Mean Time Between Failure rate of 19.7 years
  • Maintenance Free: Robust housing and parts prevent damage during installation and operation. Ability to deal in realtime with changing floor surfaces and floor reflection levels.



For more information download our product datasheet.



Model SSS-5 Monitored Swing Door Safety Sensor
Detection Method Infrared Presence Detection with P.S.D. distance measurement
Installation Height 2600mm (8.5ft) Max
Sensor Dimensions
  • SSS-5S1: 360mm (W), 45mm (H), 45mm (D)
  • SSS-5M1: 692mm (W), 45mm (H), 45mm (D)
  • SSS-5L1: 1,023mm (W), 45mm (H), 45mm (D)
Pattern Adjustment
  • Beam Angle Adjustment: 5, 10, 15, 20, 25 degrees
  • Detection Distance Adjustment: Dead Zone, 50-500mm
  • Detection Range: 0 – 2.5m (0 – 8ft 2 inches)
Presence Timer Infinity
IP Rating 54
Power Supply 12 to 24V AC or DC ± 10%
Power Consumption
  • AC12V-1.7 [VA] (Max), DC12V-95 [mA]
  • AC24V-2.3 [VA] (Max), DC24V-55 [mA]
Output Relay Relay contact: DC50V 0.1A Non Voltage 1C
Response Speed Less than 100 msec
Relay Hold Time 0.5 sec
DIP Switch Functions
  • Test Input: 1 BITOptical
  • Interference: 1 BIT
  • Relay Output Mode: 1 BIT
  • Masking Detection Spots: 2 BIT
  • Detection Range: 3 BIT
Operating Temperature -20°C to 60°C, (-4°F to 140°F)

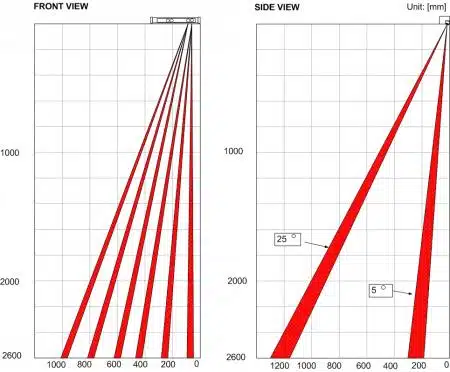

SSS-5



For more information download our product datasheet.

For information about installation and operating instructions please download our PDF.
