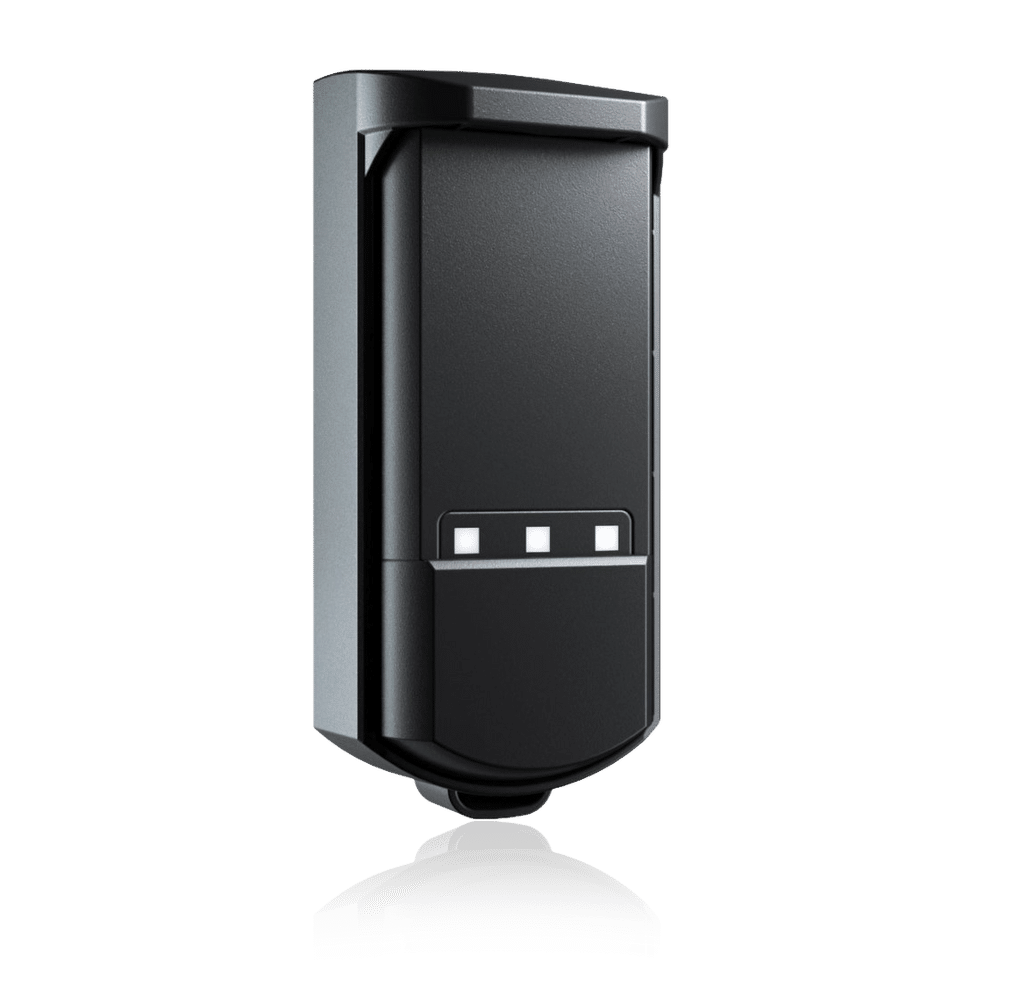

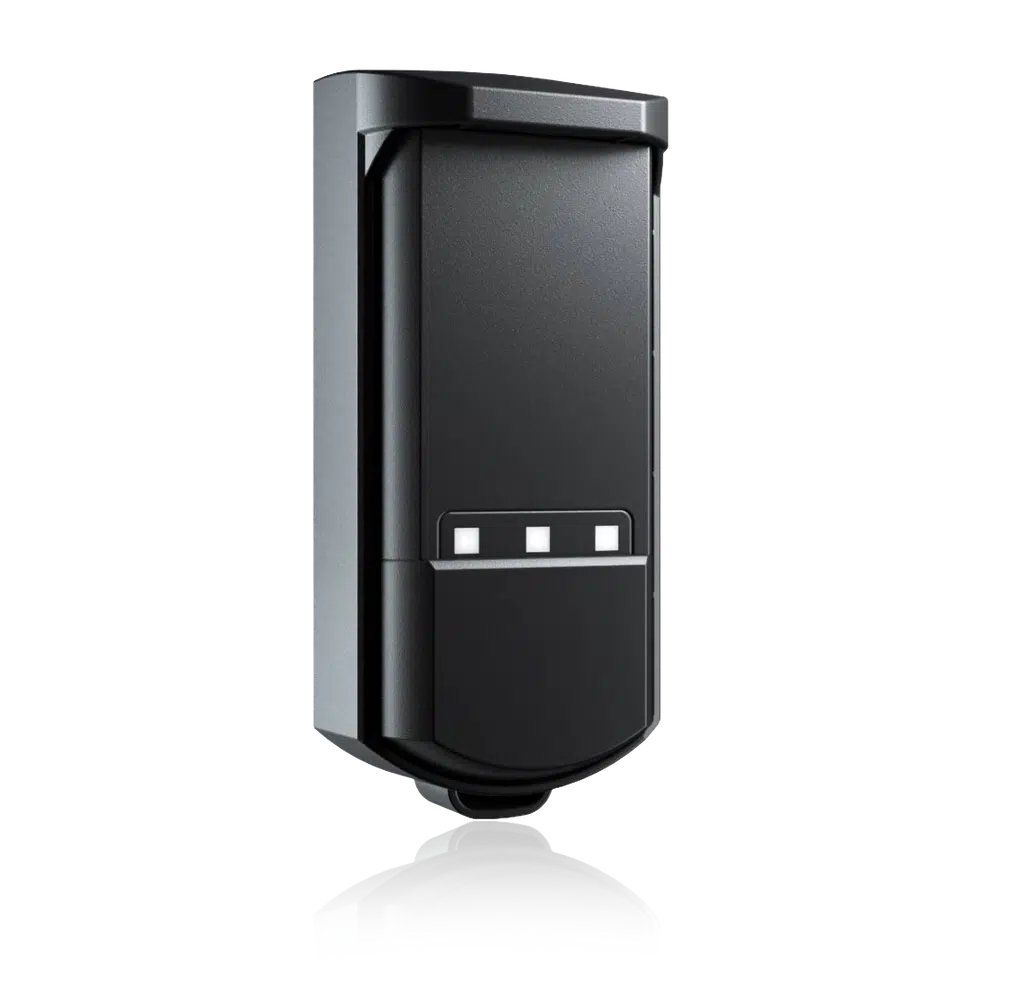

EVOLOOP Radar

The EVOLOOP is the alternative to loop detectors and photocells beam. It removes the cost associated to cut roads for loop detectors and suits roads made of dirt or gravels.



With a 140° field of view, you can configure up to 3 virtual independent loops to enhance safety allow to detection of incoming vehicles and/or pedestrians.

Make an enquiry

The EVOLOOP will trigger opening and closing of the barrier and is compatible with the activation of ticketing and license plate recognition systems. As a safety device it will protect both vehicles and pedestrians reducing the risk of contact with the boom in all environments and conditions.

The EVOLOOP Radar includes the following features:

  • Easy Installation: No more expensive dusty road works with noisy and heavy equipment. Just mount the sensor, plug it and launch a teach-in. Ready to go!
  • Connect & Set: Via a mobile app, start a simple teach-in and setup 2 or 3 preconfigured loops in no time. Choose the loop type, target type and add a sense of direction to filter out cross-traffic.
  • Multiple Applications: Whether you need to setup a paid parking system or need protection against collision with the boom the EVOLOOP can be installed on all types of barriers, even with skirt or folding support.
  • Day and Night Any environment: The EVOLOOP has been designed for all weather condition. The virtual loops are reliable and resistant in all environments including challenging weather like heat, fog, dust, heavy rain, humidity even frost or snow



The EVOLOOP adapts to all applications – see it in use:

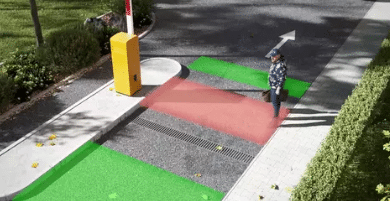

EVOLOOP Radar 3 zones video image

EVOLOOP RADAR Application example

EVOLOOP RADAR Application example

For more information download our product datasheet.



Specification
EVOLOOP Radar
Technology
FMCW, Mowa inside (microwave)
Radiated Frequency
60 GHz
Max. Detection Field
Up to 7m
Radiated Power
< 20 dBm EIRP
Radar Field of View
140° opening field and 40° in elevation
Reference Body for Safeguarding Level D
Corner reflector with RCS = 0.17m²
Antenna Angle Adjustment
-20° to +20 °
Supply Voltage*
12 – 30V DC +/-10% - 12-24V AC +/-10%
Max. Power Consumption
<3W
Peak Current at Power-On
1.3A
Cable Length
3m (standard)
Response Time
Typical 100ms (max 250ms)
Test Input
1 optocoupler (galvanic isolated – polarity free)
LED
3 RGB LED and 1 white LED for Bluetooth®
Dimensions
50 mm x 150 mm x 68mm (form factor)
Temperature Range
-25°C to +55°C **; 0-95% relative humidity, non condensing
Degree of Protection
IP65 (IEC/EN 60529)
Material
PC / ASA / Aluminium ADC12 – black color

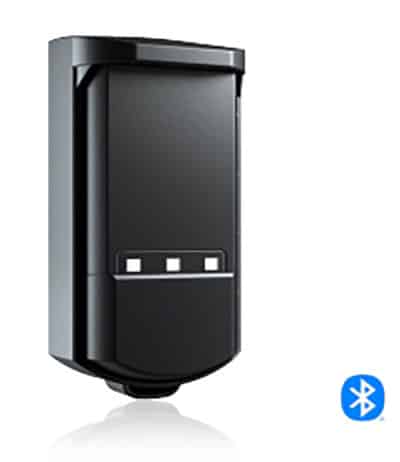

Blutooth®
Operating bandwidth: 2402 MHz – 2480 MHz Maximum transmitted power: 12 dBm
Outputs*
2 electronic relays (galvanic isolated - polarity free)
1 relay
Conformity
This product conforms to all applicable European Union legislation. Please refer to the Declaration of Conformity for further information.

* External electrical sources must ensure double insulation from primary voltages.
** When using AC supply, the maximum temperature is limited to 50°C.

Specifications are subject to change without prior notice. All values measured in conditions and with a temperature of 25°C.

For more information download our product datasheet.

For information about installation and operating instructions please download our PDF.
