D10 & D20 SMART Sliding Gate Opener for 1000kg & 2000kg Gates | Industrial Heavy Duty

24 VDC High-Speed- Heavy Duty –  Industrial operators designed for gates up to 1000 and 2000 kg



The D10 & D20 SMART sliding gate operator’s innovative design offers speed, performance, convenience and control at your fingertips – ideal for commercial and industrial applications where heavy gates are installed and reliability is essential.

Make an enquiry

These SMART sliding gate operators high torque 24vdc motor coupled to a die-cast aluminium gearbox to provide an automation system that is fast, powerful, and easy to set up.

The powerful D10 SMART is suitable for gates weighing up to 1000 kg and will open a standard 4m gate in 10 secs.  The D20 SMART is suitable for gates up to 2000 kgs and will open a 4m gate in 14 seconds.

Perfect for unit/residential complexes, warehouse and factory entrances etc.

The D20 SMART Sliding Gate Operators include the following features:

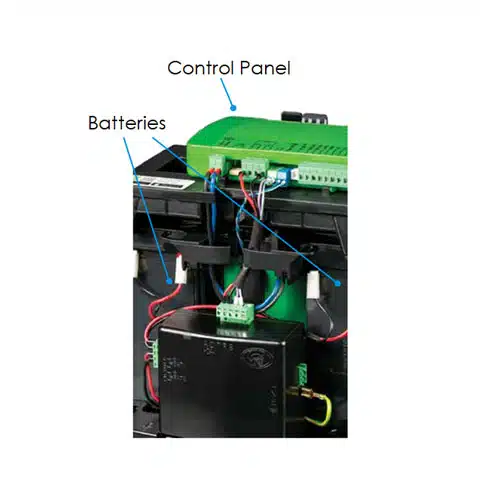

  • Battery backup is standard: for  peace of mind during power failure situations — the 24 volt battery backup system allows the sliding gate to continue to function for up to 120 operations
  • Speed control: independently adjustable opening/closing speeds allow the gate to open at full speed and close at a slower to minimise accidents and damage to the gate
  • Advanced safety features: Cutting-edge obstruction detection technology provides the highest level of reliability and positional accuracy
  • In-built radio receiver: high-security code-hopping Nova radio receiver is built into the control panel – up to 1500 individual transmitters can managed using the MyCentsys Pro app
  • Individually configurable inputs and outputs
  • Manual release: a convenient and intuitive single-action manual release
  • Fast installation and fault finding: innovative in-app diagnostics measure and monitor many aspects of the operator’s performance in real-time, including the state of the controller, battery condition and status of connected external accessories.  The diagnostic function reduces installation time and makes it easy to identify faults.
  • Operation and intelligent logging and reporting: The My Centsys Pro app provides feedback about the gate’s status directly to a mobile phone.  Phone alerts keep users updated on events including; the condition of the battery i.e. low voltage, the gate status, the speed at which the gate is running and the state of connected accessories such as PE beams and loop detectors.



D10 SMART Product Features Video
D10 SMART Product Features Video

D20 SMART Product Features Video
D20 SMART Product Features Video











For more information download our product datasheets

Specification
D10-SMART
D20-SMART
Input voltage (1)
90V – 240V AC +/-10% @ 50Hz
Current consumption (Mains)
250mA
Battery charger current output
1.8A @ 27.4V +/-1%
Max no of operations per day- Mains present (2,3)
750 (3,6)
Duty cycle – Mains present  (2,3)
Continuous
Motor voltage
24V DC
Motor power supply

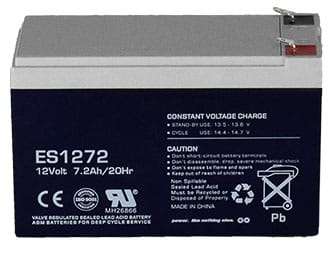

Battery-driven (Standard Capacity 2 x 12V 7.2Ah) (3)
Current consumption (motor at rated load)
8A
9A
Input/Output sink currents (Max accessory current draw)
I/O  (1-4)
100mA (12/24V)
I/O  (5,6)
3A (12/24V) 10sec Pulse
Motor push force – starting
40kgf
52kgf
Motor push force – rated
30kgf
39kgf
Gate mass – maximum
1000kg
2000kg
Gate length – maximum
25m
25m
Gate speed (varies with load) (4)
Up to 26m/min
Up to 18m/min (3)
Manual Override
Lockable with key release
Drive Pinion
17T Module 4
13T Module 4
Operations in battery backup mode with 7.2Ah batteries
Half day (2, 5, 6)   Power Saving -15m/min 15kgf
118
101
Normal – 26m/min 15kgf
63
155
Full day (2, 5, 6)   Power Saving -15m/min 15kgf
93
80
Normal – 26m/min 15kgf
50
45
Collision Sensing
Electronic
Operating temperature range
-15°C to +50°C
Onboard receiver type
Code-hopping multichannel receiver with selective add and delete
Rolling code (Keelog encryption) multichannel
Receiver code storage capacity
1500 Remotes (7)
Receiver frequency
433.92MHz
Degree of protection
IP54
Mass of unit packed (with standard kit, but excl. rack and battery)
13kg   (18kg with battery)
Packaging dimensions (with standard kit, but excl. rack and battery)
350mm wide x 282mm deep x 470mm high
Notes
1. Can operate off a solar supply, consult your local dealer for assistance
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Opening and closing speeds can be configured to run slower depending on the requirements of individual installations
5. Can increase battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used

For more information download our product datasheets

Download our installation and operating instructions



Get the SMART experience with the MyCentsys Pro mobile app for INSTALLERS and USERS!



INSTALLERS – effortless operator set-up and gate management using your smartphone.  The MyCentsys Pro app makes setting up and configuring the operator’s many features quick and easy.   Set the gate limits, speed, automatic closing and unique profiles for users, with just a few taps.

USERS – take control of your gate and/or garage. The MyCentsys Remote is a feature-rich interface for all gate access and automation requirements. It seamlessly integrates with both SMART and ULTRA solutions, providing live device states and health information, push notifications and the ability to triger actions, all in one convenient App.
