Sentinel Z23 Fast Access Swing Gate

High speed, precise opening/closing speeds – safe, secure and efficient pedestrian access control



The Sentinel Z23 Fast Access Swing Gate features a brushless DC motor and servo control technology, ensuring excellent synchronization, smooth operation, and low failure rate.



Specifically designed for applications with high-volume pedestrian traffic that demand swift access, the Sentinel Z23 Swing Gate is suitable for various indoor and outdoor applications, such as airports, office buildings, factories, railway stations, customs, docks, and more.

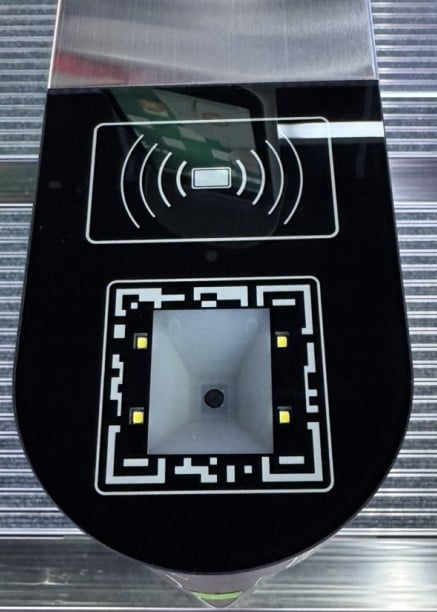

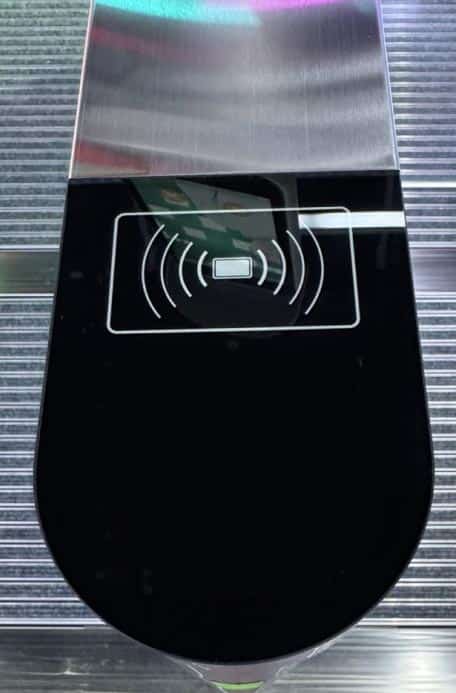

The Z23 is compatible with a wide range of gate-opening methods, including but not limited to face recognition, card swiping, QR code scanning, and ID card authentication.

The Z23 swing gate’s modular design results in a simpler structure making maintenance easy.  Multiple pairs of infrared sensors provide enhanced detection of pedestrian and object passage, ensuring robust security assurance.

The Sentinel Z23 Fast Access Swing Gate includes the following features:

  • Stable and efficient motor: Brushless DC motor, strong power, integrated core design, wear resistance and noise reduction, and stability and efficiency
  • Diversified access permissions: many verification methods available including face recognition, fingerprint scanning, QR code and ID card swiping etc
  • Intelligent security protection: uses multiple intelligent anti-pinch technologies, along with partition detection and a fuzzy algorithm to effectively safeguards pedestrians
  • Acousto-optic interaction: incorporating anti-tailing and anti-trespassing features, as well as audible and visual warning prompts to ensure the legality and effectiveness of pedestrian access control
  • Automatic management functions: integrated automatic reset, unlocking when being powered off, self-check when being powered on, zero point correction and various gate-opening modes.



For more information download our product datasheet.

adobe-PDF-icon SENTINEL Z23 FAST ACCESS SWING GATE PRODUCT DATASHEET

Specification Sentinel Z23 Fast Access Swing Gate
Body Material 304 stainless steel
Gate Material Tempered glass or acrylic
Dimensions (L*W*H) 1,600*116*950mm
Lane Width 600-1,150mm
Gate Interception Height 800mm
Gate Height from the Ground 240mm
Power Supply AC 220V/110V±10%, 50/60HZ
Device Power The motor power is 40W and the total power is 100W
Access Speed 20 persons/min when normally closed, 40 persons/m when normally opened
Open-closing Speed 0.5s-1.5s adjustable
Detection Method Photoelectric switch
Number of Electric eyes 10
Communication Interface Serial port and multi-channel I/O interface
Communication RS485 and TCP/IP
Noise ≤65dB
Working Temperature -25℃ to +70℃
Working Humidity ≤90%, no condensation
Protection Class IP54
Working Environment

Indoor and outdoor







For more information download our product datasheet.

adobe-PDF-icon SENTINEL Z23 FAST ACCESS SWING GATE PRODUCT DATASHEET

For information about installation and operating instructions please download our PDF.

adobe-PDF-icon SENTINEL Z23 FAST ACCESS SWING GATE INSTRUCTIONS AND USER MANUAL
