SafePass LD116 & LD216 Din Rail Mount Loop Detectors

With a very fast response time of 12ms the loop will provide an excellent safety feature for even the fastest doors and parking boom gates.

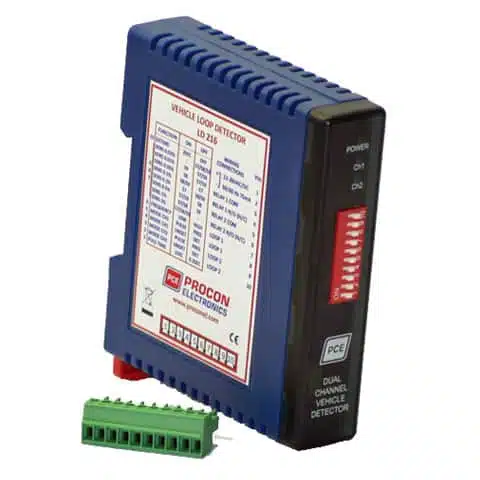

The LD116 and LD216 series of loop detectors have the same features and quality of the LD 100 series but are housed in a compact din rail mount enclosure. The eight sensitivity settings and ASB (automatic sensitivity boost) offer enough flexibility to detect small cars and high bed trucks.

Make an enquiry

The LD116 & LD 216 Din Rail Mount Loop Detector includes the following features:

  • Reset Switch: The reset switch enables the detector to be manually reset during commissioning and testing. This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection.
  • Selectable Pulse Time: This feature sets the length of time that the pulse relay will be energised for 0.1 second or 0.2 seconds.
  • Pulse Relay Selection: The Pulse relay may be configured to energise on detection of a vehicle or when the vehicle leaves the loop.
  • Sensitivity Boost: This feature sets the undetect level to maximum sensitivity and is used to prevent loss of detection of high-bed vehicles.
  • Switch Selectable Sensitivity: Eight sensitivity settings are available on the switches to allow flexibility in configuration.
  • Switch Selectable Frequency: Two-frequency settings are available to prevent cross-talk between adjacent loops.
  • Filter Option: This option is used to provide a delay between detection of the vehicle and switching of the output relay. This delay is normally used to prevent false detection of small or fast moving objects.
  • Permanent Presence Option: This feature ensures detection of the vehicle will be maintained when the vehicle is parked over the loop for extended periods.



Available with the LD213B Series Only:

  • Selectable N/O or N/C relay output:  Internal jumpers enable the output relay contacts to be configured for normally open or normally closed contacts.
  • Direction Logic: This feature enables the detector to give a pulse output on relay1 for a vehicle travelling from loop1 to loop2 and a pulse output on relay 2 for a vehicle travelling from loop2 to loop1.



For more information download our product datasheet.

Specification
LD116 & LD216 Series Loop Detector
Power Requirement
11 – 26v ac/dc  100mA max
Presence / Pulse relay
Change over contact 0.5A /220vac
Indicators
LED indicators show: Power, detect state and loop fault
Detector Tuning Range
15—1500uH
Frequency
Approx. 23 -130KHz
Sensitivity Settings
1 – 0.01 %    HIGH
2 – 0.02 %
3 – 0.05 %
4 – 0.1 %
5 – 0.2 %
6 – 0.5 %
7 – 1 %
8 – 2 %         LOW
Protection
Loop isolation transformer with zener diodes and gas discharge tube
Environmental Tracking
Automatic Compensation
Response Time
Approximately 120ms after vehicle enters loop
Connector
10 way removable screw terminal block
Operating Temperature
-40 °C TO 80 °C



For more information download our product datasheet.
