HR100-CT Uni-Directional Sliding Door Activation Sensor, for doors up to 3m high.

The HR100-CT is an advanced active infrared  sensor for uni-directional door activation, combining monitored safety with a unique Door Learn capability.

Its adjustable detection area eliminates false door openings in busy, high-traffic environments.
Suitable for mounting heights up to 3m, the HR100-CT delivers reliable automatic sliding door activation alongside unparalleled pedestrian safety

Make an enquiry

The HR100-CT Uni-directional Sliding Door Activation Sensor includes the following features:



  • Versatile: Flexibility to adjust the door activation and pedestrian safety detection zones independently makes the HR100-CT the ideal sensor for every sliding door installation.
  • Timely Door Opening: Adjustable 2m detection distance ensures timely door openings.  Ideal for sliding doors installed on busy high streets.
  • Energy Efficient: Unidirectional detecting technology reduces building energy losses by as much as 15%.  Accurately adjustable detection area reduces false door activations.
  • Intelligent unidirectional detection ability reduces door hold open time by 20% and building energy loss by 6% in a standard installation.
  • Unparalleled Pedestrian Safety: Door learn technology enables unique ability to memorize door motion allows the infrared safety curtain to be focused inside the moving door leaf resulting in unparalleled pedestrian safety.
  • 3 row infrared safety curtain protects pedestrian in the vicinity of the closing door.  Monitored safety system and is EN16005 compliant, with dual relay outputs.
  • Reduced Time Onsite: Installation instructions printed on the sensor body. Pre-configured, EN16005 compliant dip switch settings.
  • Intelligent software eliminates site call-backs caused by false door activations. One piece sensor body construction prevents parts getting lost or broken during installation.



See the HR-100 in use:

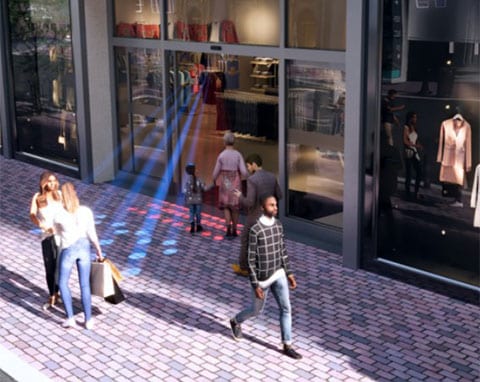

HR100 detection zone_video

For more information download our product datasheet.

Specification
HR100-CT Dual Relay Output Pedestrian Door Activation Monitored Safety
Detection Method
Active Infrared Detection
Installation Height
2000mm to 3000mm (6.5ft to 10ft)
Sensor Dimensions
230mm (W), 70mm (H), 44mm (D)
Pattern Adjustment
Width Adjustment: Inner 3 rows Wide or Narrow
Width Adjustment: Outer 2 rows Wide or Narrow
Depth Adjustment: Inner 3 rows 0° – 8°
Depth Adjustment: Outer 2 rows 0° – 10°
Depth Adjustment: 1 to 5 rows of detection (Dip Switch)
Presence Timer
2sec, 30sec, 1min and infinity (Inner 3 rows)
1sec (Outer 2 rows)
IP Rating
54
Power Supply
12 to 24V AC or DC ± 10%
Power Consumption
AC12V-2.1 [VA] (Max), DC12V-110 [mA] (Max)
AC24V-2.1 [VA] (Max), DC24V-60 [mA] (Max)
Output
Open Collector 7.5 [mA] (Min) Resistor Load
Relay Hold Time
Approx. 0.5 sec
LED Indication
Green Standby
Blue ROW 4,5 Detecting
Red ROW 1,2,3 Detecting
Operating Temperature
-20°C to 60°C, (-4°F to 140°F)
Weight
250g (0.55 lbs)
Available Colours
Black or Silver
Accessories Provided
2.5m Connection Cable, Mounting Template, Mounting Screws, Installation Instructions

DG HR100 DG HR100

DG HR100 DG HR100



For more information download our product datasheet.

For more information on installation and operating instructions download our PDF
